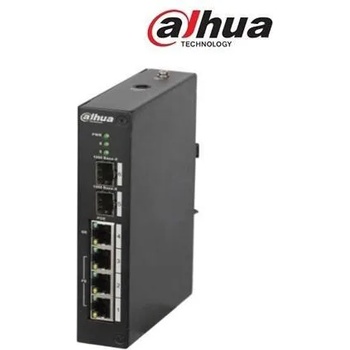

Dahua PFS4206-4P-120

Dahua PFS4206-4P-120

Model
DH-PFS4206-4P-120

Ethernet Port
2*1000 Base-X(SFP)
1*10/100/1000 Base-T(Hi-PoE/PoE+/PoE)
3*10/100 Base-T (PoE+/PoE)

PoE Power Consumption
Port1, 2, 3 ≤30W
Port4≤60W
Total≤120W

PoE Protocol
PoE(802.3af), PoE+(802.3at), Hi-PoE

Switching Capacity
6.8Gbps

Packet Forwarding Rate
4.91Mpps

Packet Buffer Memory
1Mb

Application Humidity
10%~90%

Power
DC48~57V

Lightning Protection
Common Mode 4KV

Differential Mode 2KV
Working Temperature
-30°C~65°C

Weight
480g

Dimension(W×D×H)
150mm×100mm×30mm

System
Username / password: admin/(empty)
IP Address :192.168. 1.110/24

PoE Budget
120W

MAC Table Size
8K

VLAN
802.1Q Standard VLAN

Port Mirroring
Support many-to-one port mirroring

Flow Control
Support half-duplex based on back pressure type control
Support full duplex based on PAUSE frame

Network Management
WEB, SNMP V1/V2C

Ring Network
Support Spanning Tree, STP/RSTP
Support Loop Detection

PoE Management
Support PoE power consumption, PoE on/off of IPC configuration, power down when exceeding the value of overload power
