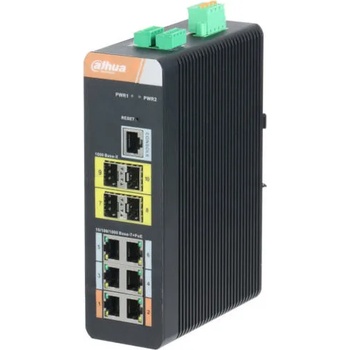

Dahua PFS4210-8GT-DP

Technical Specification
Ethernet Ports Eight (8) 10/100/1000 Base-T Ports (PoE Power Supply)
Two (2) 1000 Base-X Ports
PoE Features
IEEE802.3af, IEEE802.3at: Ports 3 to 10
Consumption: Up to 30 W per port
Hi-PoE: Ports 1 and 2
Consumption: up to 60 W per port
Total PoE Budget: ≤ 120 W
PoE PIN Assignment 1, 2 (V+), 3, 6 (V-)
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Switching Capacity 28 Gbps
Packet Forwarding Rate 14.88 Mpps
Packet Buffer Memory 4 MB

Electrical
Power Requirements 9 VDC to 57 VDC or PoE (48 VDC to 57 VDC)
Power
Consumption
Static ≤ 6 W
Full Load ≤ 120 W
Environmental
Working Temperature –40° C to 75° C (–40° F to 167° F)
Application Humidity 10% to 90%
Interface
RS232 Serial Console One (1) Port
RS485 Two (2) Ports (9600 Baud Rate, TCP/UDP)
I/O One (1) Input
One (1) Output

Construction
Dimensions (W x D x H) 175.0 mm x 134.0 mm x 53.0 mm
(6.89 in. x 5.28 in. x 2.09 in. )
Weight 1.25 kg (2.76 lb)
Mounting DIN-rail

Certifications
Safety EN 60950-1:2006+A11:2009+A1:2010+A12:2001
+A2:2013
Electromagnetic
Compatibility (EMC)
FCC CFR 47 Part 15 subpart B
EN 55024:2010+A1:2015, EN 55032:2015,
EN50130-4:2011+A1:2014, EN 55035:2017
EN 6100-3-3:2013, IEC 61000-3-2:2014,
IEC 61000-3-3:2013,
Lightning Protection Common Mode: 6KV
Differential Mode: 4KV
Ingress Protection IP40
