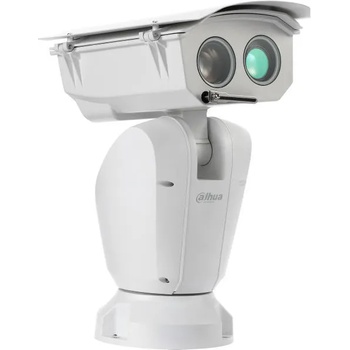

Dahua PTZ12240-LR8-N

CameraImage Sensor 1/2.8" CMOSEffective Pixels 1920(H) x 1080(V), 2 MegapixelsRAM/ROM 1024M/64MScanning System ProgressiveElectronic Shutter Speed 1/1s~1/30,000sMinimum Illumination Color: [email protected]; [email protected] (IR on)S/N Ratio More than 55dBIR Distance Distance up to 800mIR On/Off Control Auto/ManualIR LEDs Laser moduleLensFocal Length 7.9mm ~ 316mmMax. Aperture F1.6 ~ F6.1Angle of View H: 41.5° ~ 1.1°Optical Zoom 40xFocus Control Auto/ManualClose Focus Distance 100mm~ 1000mmDORI DistanceNote: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Detect Observe Recognize Identify3571m 1428m 714m 357mPTZPan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -90° ~ 45°Manual Control Speed Pan: 0.1° ~160° /s; Tilt: 0.1° ~60° /sPreset Speed Pan:160° /s; Tilt: 60° /sPresets 300PTZ Mode 5 Pattern, 8 Tour, Auto Pan , Auto ScanSpeed Setup Human-oriented focal Length/ speed adaptationPower up Action

Auto restore to previous PTZ and lens status after

power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no

command in the specified period

Protocol DH-SD, Pelco-P/D (Auto recognition)IntelligenceAuto Tracking SupportIVS Tripwire, Intrusion, Abandoned/Missing, Face Detection， Heat MapVideoCompression H. 264 / MJPEGStreaming Capability 3 StreamsResolution 1080P(1920×1080)/720P(1280×720)/D1(704 ×576/ 704×480)/CIF(352×288/352×240)Frame Rate Main stream: 1080P (1 ~ 25/30fps), 720P(1~50/60fps)Sub stream1: D1/CIF(1 ~ 25/30fps)Sub stream2: 1080P/720P/D1/CIF (1 ~ 25/30fps)Bit Rate Control CBR/VBRBit Rate H. 264: 448K~8192Kbps, MJPEG: 4096K~20480KbpsDay/Night Auto(ICR) / Color / B/WBacklight Compensation BLC / HLC / DWDRWhite Balance Auto, ATW, Indoor, Outdoor, ManualGain Control Auto / ManualNoise Reduction Ultra DNR (2D/3D)Motion Detetion SupportRegion of Interest Support

Electronic Image

Stabilization (EIS)

SupportDefog SupportDigital Zoom 16xFlip 180°Privacy Masking Up to 24 areasAudioCompression G. 711a/G. 711mu/G. 726/AACNetworkEthernet RJ-45 (10Base-T/100Base-TX)Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1xInteroperability ONVIF, PSIA, CGIStreaming Method Unicast / MulticastMax. User Access 20 usersEdge Storage Local PC for instant recording, Micro SD card 128GBWeb Viewer IE, Chrome, Firefox, SafariManagement Software Smart PSS, DSSSmart Phone IOS, AndroidInterfaceVideo Interface 1 port(BNC, 1.0V[p-p], 75)RS485 1Audio I/O 1/1Alarm I/O 7/2ElectricalPower Supply AC24V/8A(±25%)Power Consumption 70W, 90W (IR on, Heater on)EnvironmentalOperati ng Conditions -40°C ~ 70°C / Less than 95% RHIngress Protection IP66Vandal Resistance N/AConstructionCasing MetalDimensions Φ252(mm) x 360 (mm) x 464 (mm)Net Weight 12.87kgGross Weight 19kg
