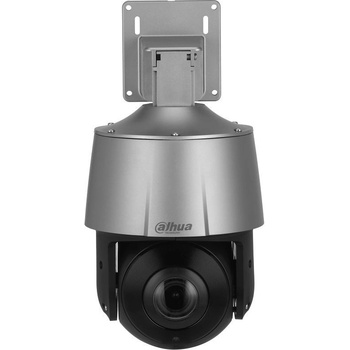

Dahua SD3A205-GNP-PV

SD3A205-GNP-PV

2MP Starlight IR AI WizSense Network PTZ Camera

> 1/2.8" 2Megapixel CMOS

> Starlight technology

> IR distance up to 30 m

> Deep-learning-based perimeter protection

> SMD Plus

> PoE

> IP66





Specifications:

CameraImage Sensor 1/2.8" CMOSPixel 2MPMax. Resolution 1920 (H) × 1080 (V)ROM 256 MBRAM 512 MBElectronic Shutter Speed 1/3 s–1/100000 sScanning System ProgressiveMin. Illumination Color: 0.002 [email protected]
B/W: 0.0002 [email protected]
0 lux (illuminator on)Illumination Distance  30 m (98.43 ft)Illuminator On/Off Control Manual/SmartIR/OffIlluminator Number 4 IR lights; 1 white lightLensFocal Length 2.7 mm–13.5 mmMax. Aperture F1.8–F3.3Field of View H: 101.6°–33.5°; V: 52°–18.7°; D: 124.7°–38.5°Optical Zoom 5xFocus Control Auto/Semi-Auto/ManualClose Focus Distance 1.2 m (3.94 ft)Iris Control FixedDORI Distance Detect Observe Recognize Identify131 m (429.79 ft) 52.3 m (171.59 ft) 26 m (85.30 ft) 12.8 m (41.99 ft)PTZPan/Tilt Range Pan: 0°–355°
Tilt: -15°–+90°Manual Control Speed Pan: 0.1°/s–80°/s
Tilt: 0.1°/s–56°/sPreset Speed Pan: 81°/s; Tilt: 43°/sPreset 300Power-off Memory  SupportIdle Motion PresetArtificial IntelligencePerimeter Protection Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.  Active DeterrenceLight Warning

White light warning

Flash duration: 5 s–30 s

Flash frequency: high, medium, low

Sound Warning

Sound warning alarm: Customizable

Alarm duration: 10 s, 20 s, 30 s

VideoCompression H. 265; H. 264B; H. 264M; H. 264H; MJPEG; MJPEG (Sub Stream); H. 265+; H. 264+Streaming Capability 3 streamsResolution 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)Frame Rate

Main stream: 1080P (1–25/30 fps); 1.3M (1–25/30 fps); 720P (1–25/30 fps)

Sub stream 1: D1/CIF (1–25/30 fps)

Sub stream 2: 1080P (1–25/30 fps); 1.3M (1–25/30 fps); 720P (1–25/30 fps)

Bit Rate Control Variable/Constant

• Bit Rate H. 264: 3 Kbps–20480 Kbps
  H. 265: 3 Kbps–20480 KbpsDay/Night Auto (ICR)BLC  SupportWDR DWDRHLC SupportWhite Balance Auto/Indoor/Outdoor/Tracking/Manual/Sodi um lamp/Natural light/Street lampGain Control Auto/ManualNoise Reduction 2D/3DMotion Detection SupportRegion of Interest (RoI) SupportDefog ElectronicFlip 180°S/N Ratio ≥ 55 dBAudioCompression G. 711a; G. 711Mu; G. 726; AAC; MPEG2-Layer2; G722.1; G729; G723NetworkEthernet RJ-45 (10/100Base-T)Protocol IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMP v1/v2c/v3 (MIB-2); RTCP; RTMPInteroperability  ONVIF Profile S&G&T; CGIStreaming Method Unicast/MulticastUser/Host  20 (total bandwidth: 64 M)Storage FTP; Micro SD card (256 G); NASBrowser  IE7 and later versions
  Chrome 42 and earlier versions
  Firefox 52 and earlier versions
  SafariManagement Software DMSSMobile Phone iOS, AndroidCertificationCer tifications

  CE: EN55032/EN55024/EN50130-4/EN 55035/EN 61000-3-2/EN 61000-3-3/EN 62368-1

  FCC: Part15 subpartB, ANSI C63.4- 2014

  Port  Audio Input 1 (Built-in Mic)Audio Output 1 (Built-in Speaker)Two-way Audio SupportAlarm Linkage Capture; preset; SD card record; send email Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; encoder state detection; memory card state detection; memory space detectionPowerPower Supply 12 VDC/2A ± 10% (supports PoE)Power Consumption Basic: 5W
  Max: 12W (illuminator on)Power Adapter IncludedEnvironmentOper ating Temperature  –30°C to +60°C (–22°F to 140°F)Operating Humidity ≤ 95%Protection IP66; TVS 2000V lightning proof; surge protection; voltage transient protectionStructureDime nsions 271.7 mm × 142.5 mm × 124.1 mm (10.70" × 5.61" × 4.89")Net Weight 1.1 kg (2.43 lb)Gross Weight 1.51 kg (3.33 lb)
