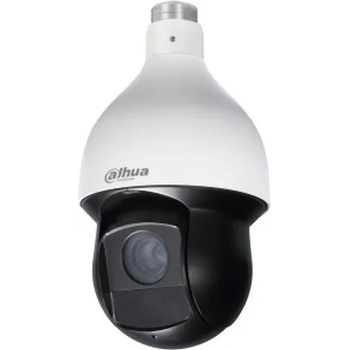

Dahua SD59225I-HC

Camera

Image Sensor

1/2.8 STARVIS CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3s~1/30,000s

NTSC: 1/4s~1/30,000s

Minimum Illumination

Color: [email protected]; [email protected] (IR on)

S/N Ratio

More than 55dB

IR Distance

Distance up to 150m

IR On/Off Control

Auto/Manual

IR LEDs

4

Lens

Focal Length

4.8mm~120mm

Max. Aperture

F1.6 ~ F4.4

Angle of View

H: 62.8° ~ 2.6°

Optical Zoom

25x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

DORI Distance

Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

1613m(5259ft)

646m(2119ft)

323m(1060ft)

161m(528ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°

Manual Control Speed

Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s

Preset Speed

Pan: 400° /s; Tilt: 300° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan , Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Day/Night

Auto(ICR) / Color / B/W

OSD Menu

Support

Backlight Compensation

BLC / HLC / WDR (120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Video

Resolution

1080P(1920×1080)/720P(1280×720)

Frame Rate

25/30fps@1080P, 25/30/50/60fps@720P

Video Output

1-channel BNC high definition video output/ CVBS standard definition video output (switchable)

Interface

Video Interface

1

Audio Interface

1 channel in

RS485

1

Alarm I/O

2/1

Environmental

Operating Conditions

-40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH

Ingress Protection

IP66

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

Φ186.0(mm) x 309(mm)

Net Weight

3.9kg

Gross Weight

7.2kg
