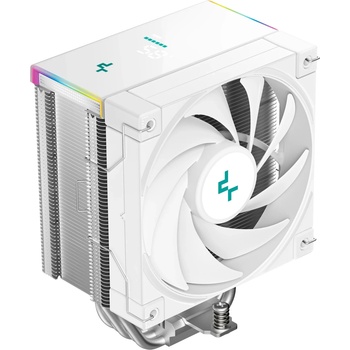

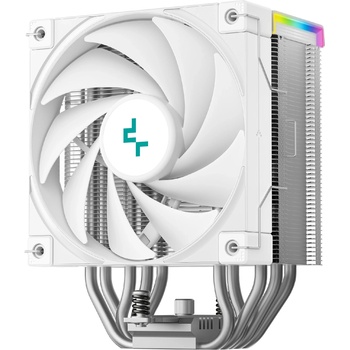

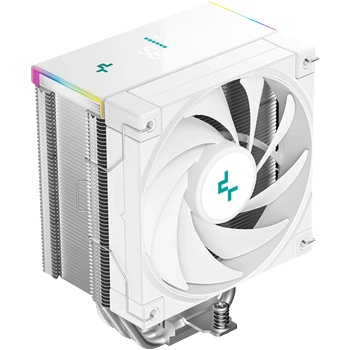

Deepcool AK500S Digital SE (R-AK500S-WHADMN-GJD)

DeepCool AK500S Digital SE WH



REAL-TIME STATUS SCREEN

The crystal-clear digital screen displays the temperature and usage of your system's CPU in real time, and there is also a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.



PROVEN AK SERIES DESIGN

A slim variant of our highly compatible AK500 CPU cooler featuring an offset direct touch, five heat pipe tower layout, a unique matrix fin design, and a high-performance FDB fan that delivers excellent heat dissipation and extremely low noise levels.



STELLAR COOLING

The exceptional cooling performance of the AK500S DIGITAL SE WH on modern CPUs makes it the perfect choice for mainstream systems needing impressive price-performance ratio in a compact size.

COOL, QUIET, AND POWERFUL

Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency.

PREMIUM COMPATIBILITY

Designed with offset heat pipes to accommodate the larger heat sink depth for better component compatibility. This allows more space for tall heat spreaders and an unobstructed view of all your RAM slots.



Application For

Intel LGA1851/1700/1200/1151/1150/1155

A MD AM5/AM4



Technical Spec

Product Dimensions 125×96×160 mm(L×W×H)Heatsink Dimensions 120×60×155 mm(L×W×H)Net Weight 864 gHeatpipe Ø6 mm×5 pcsFan Dimensions 120×120×25 mm(L×W×H)Fan Speed 500~1850 RPM±10%Fan Airflow 68.99 CFMFan Air Pressure 2.19 mmAqFan Noise ≤28 dB(A)Fan Connector 4-pin PWMBearing Type Fluid Dynamic BearingFan Rated Voltage 12 VDCFan Rated Current 0.12 AFan Power Consumption 1.44 WLED Type Addressable RGB LEDLED Connector 3-pin(+5V-D-G) and 9-pin USB 2.0LED Rated Voltage 5 VDCLED Power Consumption 3.75 W
