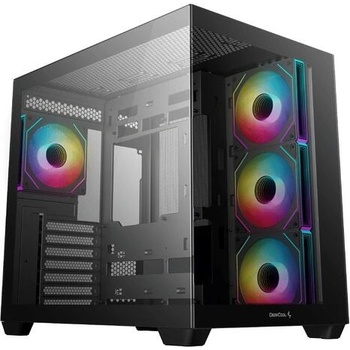

Deepcool CG530 4F Black ( R-CG530-BKADA4-G-1)

DeepCool CG530 4F

Advanced Dual-Chamber Design

Featuring a wide case structure with a sophisticated dual-chamber layout, this case ensures excellent compatibility and optimal airflow. The PSU and hard disks benefit from separate air channels, while support for rear connector motherboards keeps the internal layout impeccably neat and organized.



High-Performance Aesthetics

Engineered for both superior aesthetics and thermal efficiency, the CG530 4F comes pre-installed with three PWM ARGB reverse flow fans on the side and one PWM ARGB standard fan on the rear. This advanced fan configuration not only optimizes heat dissipation but also enhances system performance, while the four PWM ARGB fans deliver a captivating gaming ambiance, transforming your build into the ultimate "SHOW CASE".



Versatility and Compatibility

The CG530 WH accommodates component ranging from a 210mm PSU, to a 410mm GPU, ensuring installation of the most powerful components without compromise. Supports ATX motherboards and offers 7 expansion slots, providing ample room for multiple GPUs, high-end sound cards, and other peripherals. Additionally, the CG530 WH features versatile storage options with 2 x 3.5"" drive bays and 2+1 x 2.5"" drive bays, allowing a mixture of storage solutions for optimal performance and capacity.

Easy Maintenance and Cable Management

Keep your build pristine and your components dust-free. The top and bottom panels are equipped with magnetic air filters, making cleaning a breeze and providing robust dust prevention. Additionally, the backplane offers an impressive 45mm of wiring space, ensuring that cable management is straightforward and hassle-free. Enjoy a clean, organized interior that enhances airflow and simplifies maintenance.

Well connected

Additional I/O ports, featuring dual USB 3.0, USB 2.0, and 2-in-1 audio port, offers seamless connectivity for multiple devices, enhancing user versatility and system integration.

Specifications



Product Dimensions 440x285x399mm (LxWxH)Net Weight 7.0kgMaterials ABS+SPCC+Tempered GlassMotherboard Support ITX/Micro-ATX/ATX
ATX(Rear Connector)/Micro-ATX(Rear Connector)Front I/O Ports USB3.0x2, Gen2 Type-C x1, Audio/Micx13.5" Drive Bays 22.5" Drive Bays 2+1Expansion Slots 7SlotsPre-Installed Fans Side: 3x120mm(PWM+ARGB Reverse Blade)
Rear: 1x120mm(PWM+ARGB)Fan Support Front: NA
Top: 3x120mm/2x140mm
Side: 3x120mm/2x140mm
Rear: 1x120mm
Bottom: 3x120mm/3.5 HDD+2x120mm/2.5 SSD+2x120mmRadiator Support Front: NA
Top: 120/140/240/280/360mm
Side: 120/140/240/280mm
Bottom: 120/240/360mmCPU Cooler Height Limit 160mmGPU Length Limit 410mmPower Supply Type ATX PS2 (maximum length: 210mm)
