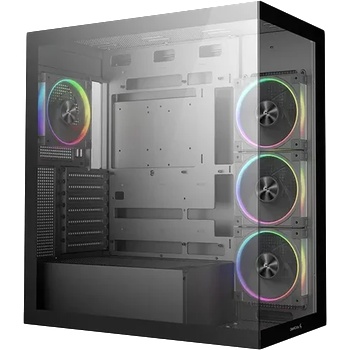

Deepcool CG580 4F v2 black (R-CG580-BKADA4-G-2)

DeepCool CG530 4F V2



Scenic view

The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build. Your system will look more streamlined and cleaner thanks to the motherboard tray that can support mainstream motherboards models with back connectors from ASUS and MSI.



Innovative cooling plus visual experience

The CG580 4F V2 stands out with a pre-installed cooling setup, featuring three PWM ARGB reverse flow fans on the side and one standard PWM ARGB fan at the rear. This configuration creates a streamlined airflow path that enhances thermal efficiency. Coordinated ARGB lighting across the fan frames and rings supports motherboard sync for a unified and dynamic visual effect.



LED button operation instructions



Swit ching Lighting Effect

Short press the LED button to cycle through 16 pre-set lighting effects.



When Connected to Motherboard Sync Cable

Long press the LED button (about 2-3 seconds) until a white flash: Enter motherboard synchronization mode. The lighting effects will now be controlled by the motherboard.



During Motherboard Sync Mode

Long press the LED button for 2 seconds: Exit the motherboard sync mode and return to lighting control by the case lighting control board.



The support you need

The CG580 4F V2 is designed to support a wide range of components, ensuring flexibility for any build. It supports a 210mm PSU and a 410mm GPU, with the option to fit a 262mm GPU when a radiator is vertically installed on the side of the motherboard. The case is compatible with ATX motherboards and features 7 expansion slots, along with 2 x 3.5 drive bays and 2 x 2.5 drive bays, providing ample space for storage and expansion.



Quality of life features

With two USB 3.0 ports, one TYPE-C port and a hybrid audio port that can be accessed from the top I/O panel, connecting temporary devices is a breeze. Wire management is also facilitated with a 33mm backplane. The magnetic filters on the top, bottom and side keep dust out and makes cleaning a little easier.





Specifications

Product Dimensions 437×235×501mm(L×W×H)Net Weight 8.8KgMaterials ABS+SGCC+Tempered GlassMotherboard Support ITX/ATX (Rear Connector)/Micro-ATX(Rear Connector)Front I/O Ports USB3.0×2/Gen2 Type-C×1/Audio&Mic×13.5" Drive Bays 22.5" Drive Bays 2Expansion Slots 7SlotsPre-Installed Fans Side:3×120mm(PWM+ARGB Reverse Blade)
Rear: 1×120mm(PWM+ARGB)Fan Support Front: NA
Top: 3×120mm/2x140mm
Side: 3x120mm
Rear: 1×120mm/1x140mm
Bottom: 1×120mm(3.5 HDD/120FAN :Choose one of two)
PSU Shrouded: 2×120mmRadiator Support Front: NA
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Rear: 120/140mmCPU Cooler Height Limit 176mmGPU Length Limit 410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side)Power Supply Type ATX PS2(maximum length: 210mm)
