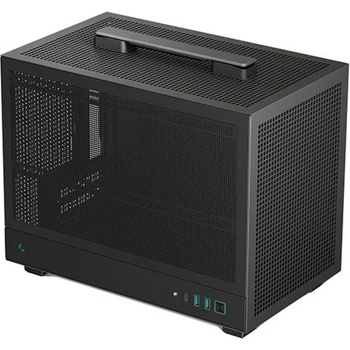

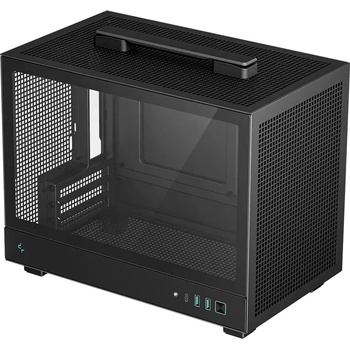

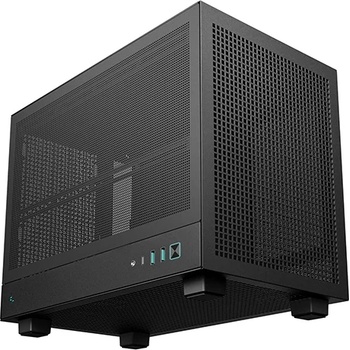

Deepcool CH160 Mesh Black (R-CH160-BKNMI0-G-1)

DeepCool CH160 Mesh



High airflow panels

Mesh panels surround the CH160 MESH from numerous sides and create a high-airflow, small-form-factor case like no other.

Full sized air cooling!

Lack of air cooler support in small mini-ITX cases is a thing of the past. The CH160 MESH can support giant air coolers up to 172mm in height!

Supports 240mm AIO!

The full mesh panel layout offers a new configuration support with a 240mm AIO.

No added GPU latency!

Designed to accommodate most 3-slot dual-fan GPUs that are shorter than 305mm in length and can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!

*GPU Length depends on the size of PSU



Flexible power options

Whether you choose to go with ATX (140) / SFX, or SFX-L power supplies. GPU Length Limit: 230mm / 305mm

ATX

SFX



< strong>Quality of life improvements

Equipped with options such as removable fan brackets, where the front fan bracket can be utilized to support both an SSD and an HDD drive; three removable dust filters for ease of cleaning; a nice and sturdy carrying handle; two USB 3.0, a Gen2 Type-C, and a hybrid audio port, the CH160 MESH makes everything a little easier.



Specifications

Product Dimensions 336×200×283.5mm(L×W×H)Net Weight 3.1KgMaterials ABS+PVC+SPCCMotherboard Support Mini-ITXFront I/O Ports USB3.0×2、Audio×1、Gen2 Type-C×13.5" Drive Bays 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）2.5" Drive Bays 1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）Expansion Slots 3 SlotsPre-Installed Fans NoneFan Support Front: 1×120 mm（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
Top: 2×120mm
Side: 2×120mm
Rear: 1×120mmRadiator Support Side：240mmCPU Cooler Height Limit 172mmGPU Size Limit Length: SFX/SFX-L: 305mm / ATX: 230mm
Height: 138mm
Width: 65mm (3 Slots)Power Supply Type ATX PS2（maximum length: 140mm）/ SFX / SFX-L
