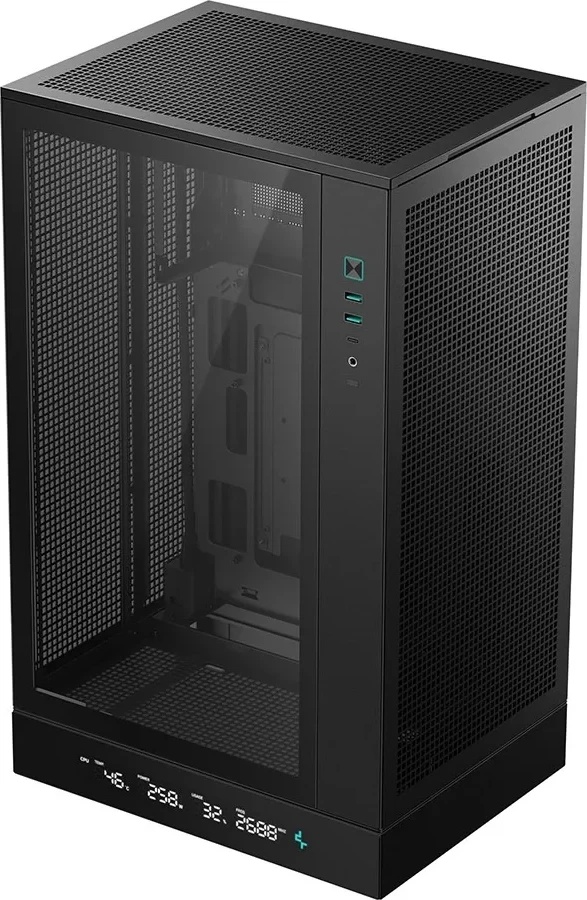

Deepcool CH270 Digital Black (R-CH270-BKNDM0-G-1)

CH270 DIGITAL

The CH270 DIGITAL is an elevated mini-tower case with a small footprint to save up your desktop space. It is adapted to accommodate up to M-ATX motherboards and mainstream ATX components to smooth your building experience.



GO MICRO

The Micro Form Factor CH270 DIGITAL comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance in the backplane.

SMALL SIZE OUTSIDE, FULL SIZE INSIDE

Upgraded on the precedent CH170 series, the CH270 DIGITAL now gives expanded options in key components compatibility that supports full-size GPU up to 388mm in length or goes even longer to 413mm without fan placement on the top. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.



UNCOMPROMISED VENTILATION

The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on the side or a 174mm high tower heat sink on the CPU.



SpecificationDetailsProduct Dimensions 296mm × 225mm × 486mm (L × W × H)Net Weight 5.8 KgMaterials ABS + SPCC + Tempered GlassMotherboard Support Mini-ITX / Micro-ATXRear Connector Micro-ATXFront I/O Ports USB 3.0 ×2, Gen2 Type-C ×1, Audio/Mic ×13.5" Drive Bays 12.5" Drive Bays 1Expansion Slots 4 SlotsPre-Installed Fans NoneFan Support Top: 2×120mmSide: 3×120mm / 2×140mmBottom: 1×120mmRadiator Support Side: 120/240/360mmBottom: 120mmFront: N/ARear: N/ACPU Cooler Height Limit 174mmGPU Size Limit 388 / 413mm (No Top Fans)Power Supply Type ATX PS2 (Maximum Length: 150mm)
