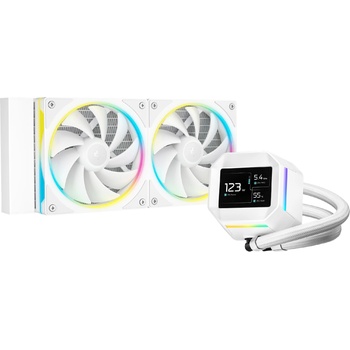

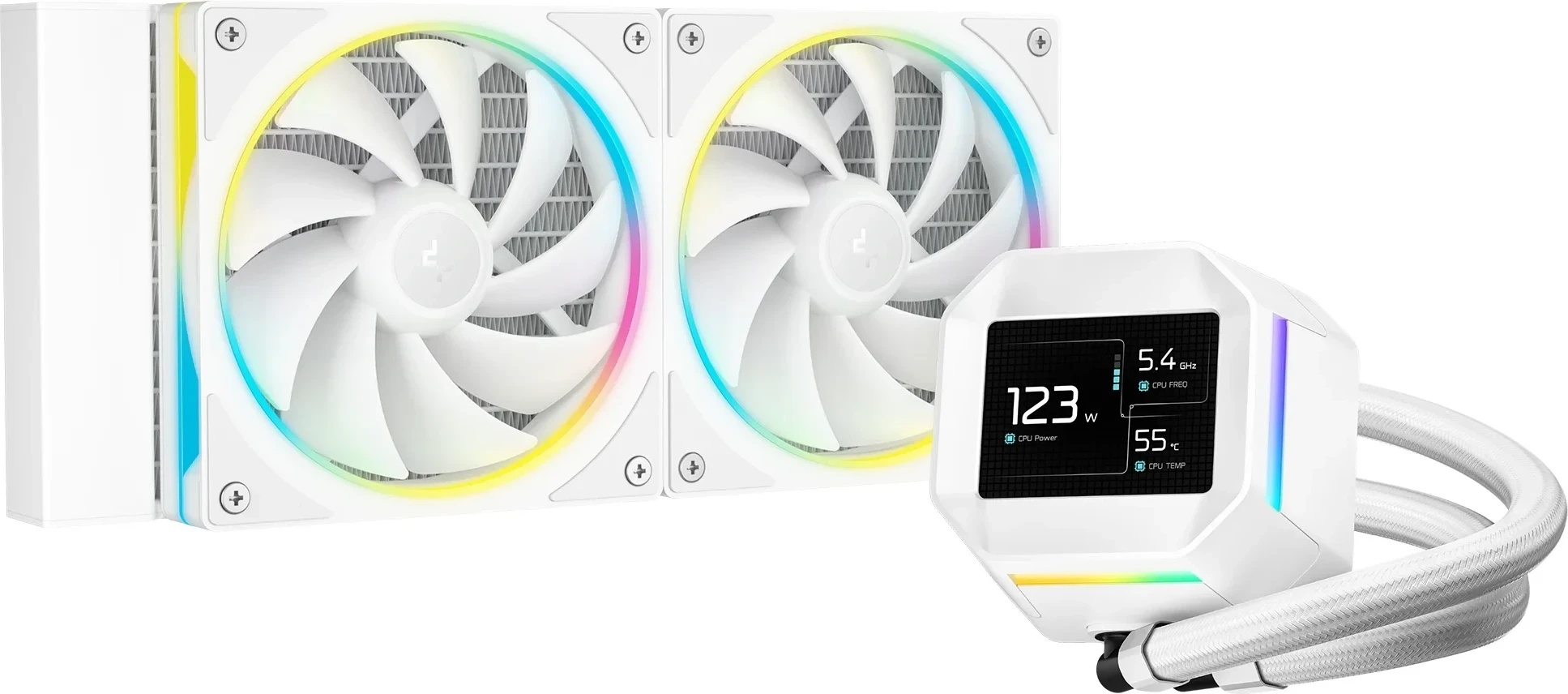

Deepcool LM240 WH (R-LM240-WHDMMC-1)

DeepCool LM240



CLEANLY FOCUSED 2.4" LCD

See more from any angle with the 2.4" IPS display. A 320×240 resolution ensures crisp visuals, while enhanced color accuracy and screen stability deliver consistent clarity throughout. The soft perimeter lighting adding structured contrast to the minimal design.

DeepCreative: THE CONTROL CENTER

Take full control of your LM cooler with DeepCreative software. Monitor essential system information in real time, personalize the screen display, or switch to Zen Mode for a distraction-free experience when performance matters most. Screen brightness and display orientation can also be adjusted to suit your setup.



Real-Time Monitoring

Media Mode

Zen Mode

CPU Monitoring

GPU Monitoring

Power Monitoring



GEN 6 WATER PUMP WITH PWM CONTROL

The LM240 WH features DeepCool's newly developed 6th-generation pump, engineered for greater thermal efficiency and quieter performance on today's high-end CPUs. A 3-phase, 6-slot, 4-pole motor with FOC control powers the pump from 2,500 to 3,400 RPM with precision and stability.



EFFICIENCY IN MOTION

Equipped with a long-life hydraulic bearing, the included FL12 SE fans delivering steady airflow and reliable cooling over long-term use. Distinctive lighting effects bring vivid colors to every edge, working in harmony with your system’s lighting setup.



ANTI-LEAK TECHNOLOGY

DeepCool’s patented Anti-Leak Technology helps maintain internal pressure balance within the liquid cooling system. A built-in valve releases excess pressure once it exceeds ambient levels, reducing the risk of leakage and improving long-term operational stability.



SIMPLIFIED INSTALLATION

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LM240 WH to the latest mainstream CPUs is included in the box, so you are ready to go.



Application For

Intel

LGA1851/1 700/1200/1151/1150/1155

AMD

AM5/AM4



Technical Spec

Net Weight 1404 gRadiator Dimensions 282×120×27 mm(L×W×H)Radiator Material AluminumTube length 410 mm(L×W×H)Pump Dimensions 90×80×63 mm(L×W×H)Pump Speed 2500～3400 RPM±10%Pump Connector 4-pin PWMPump Rated Voltage 12 VDCPump Rated Current 0.29 APump Power Consumption 3.48 WFan Dimensions 120×120×25 mm(L×W×H)Fan Speed 400~2400 RPM±10%Fan Airflow 66.23 CFMFan Air Pressure 3.27 mmAqFan Noise ≤36.07 dB(A)Fan Connector 4-pin PWMBearing Type Hydro BearingFan Rated Voltage 12 VDCFan Rated Current 0.18 AFan Power Consumption 2.16 WLED Type Addressable RGB LEDLED Connector 3-pin(+5V-D-G)LED Rated Voltage 5 VDCLED Power Consumption 1.5 W（PUMP）/ 3.5 W（FAN×2）
