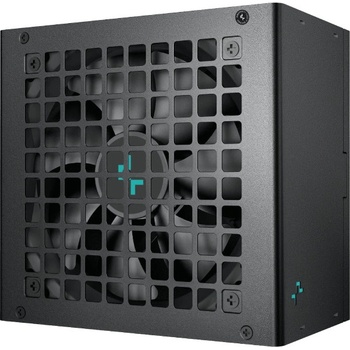

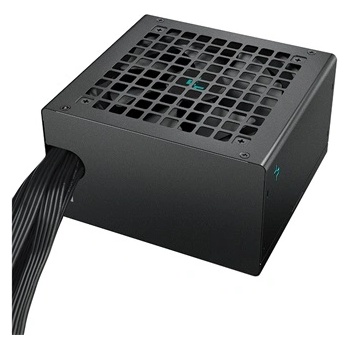

Deepcool PL750D 750W v2 80 PLUS Bronze (R-PL750D-FC0B-EU-V2)

Native ATX3.1

Based on INTEL's latest ATX3.1 standard, the PL750D has the ability to provide twice the total system power for 0.1 ms, so power spikes will never be an issue. A native PCIe 5.1 power connector is included and has been rated up to 450 watts.

Premium electrolytic capacitors

High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.

Rock solid reliability

Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.

Past, present, and future

Equipped with three PCIe, two EPS, and a 16AWG 12V-2x6 cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

Cables

Mai n Power Connector (20+4)Pin X1 (550mm)
CPU (4+4) Pin X2 (700mm)
PCI-E (6+2) Pin X1 (550mm)
PCI-E (6+2) Pin X1 (550 cable and 2x 120mm connectors)
12V-2x6 (16Pin) X1 (600mm)
SATA x 4 + 4Pin Peripheral x 1 X2 (450 cable and 4x 100mm connectors)



Speci fications

Type ATX12V V3.1Product Dimensions 150×140×86mm (W x L x H)Efficiency certification 80Plus Bronze/Cybenetics Silver/PPLP Silver/CQC IIFan Size 120mmFan Bearing HYB(Hydro Bearing)Topology Active PFC+DC to DCCapacitors Chinese Electrolytic CapacitorsPower Good Signal 100-150msHold Up Time ≥16msEfficiency ≥85% Under Typical Load(50% Loading)Protection OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLOOperation Temperature 0 - 40℃Regulatory CE/FCC/CCC/RCM/EAC/BIS/
CAN ICES-003(B)/NMB-003(B) /TUV-RHErp Regulation ErP 2014Environment Protection WEEE/中国 RoHS/Triman/P65MTBF 100,000 Hours
