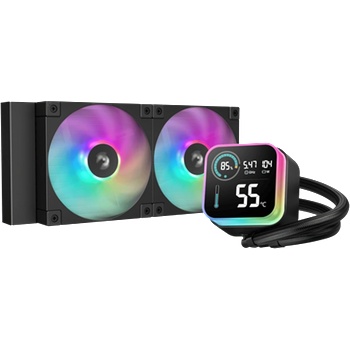

Deepcool Water Cooler LQ240 (R-LQ240-BKLSMW-G-1)

DeepCool LQ240



5 Pro generation pump

Built on DeepCool's optimized 5 PRO generation high-performance water pump, the LQ240 brings cooling modern power-hungry CPUs to a new level with its FOC (Field Oriented Control) Closed-Loop Control. The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM.



DeepCreative: THE CONTROL CENTER

Bring all of the great features of the LQ coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have Halo ARGB accents synced to your motherboard's ARGB controller or use the thermal color warning system. The software will get rolling updates, so expect expanding features in the near future.

CPU Usage + Multi Color Circular Status Panel

CPU Frequency GHz

CPU TDP Wattage

CPU Temperature Status with Color Indicator in ℃/℉

Sync up your setup

The ARGB Halo pump head along with a pair of FD12 ARGB Fans on the LQ240 adds a vibrant glow, transforming your build into a visual masterpiece. With full customization at your fingertips, you can easily control and synchronize the RGB lighting effects through compatible motherboards and controllers.

Anti-Leak technology

Incorporating DeepCool's patented Anti-Leak Technology, this system is designed to enhance the longevity and reliability of the AIO. The internal valve actively regulates pressure, releasing excess pressure when it surpasses atmospheric levels. This innovative feature not only extends the lifespan of the AIO but also significantly reduces the risk of leaks.



Application For

Intel

LGA1851/1 700/1200/1151/1150/1155

AMD

AM5/AM4



Specifications

Net Weight 1530 gRadiator Dimensions 282×120×27 mm(L×W×H)Radiator Material AluminumTube length 410 mmPump Dimensions 89×76×64 mm(L×W×H)Pump Speed 3400 RPM±10%Pump Connector 3-pinPump Rated Voltage 12 VDCPump Rated Current 0.35 APump Power Consumption 4.2 WFan Dimensions 120×120×25 mm(L×W×H)Fan Speed 600~2400 RPM±10%Fan Airflow 72.04 CFMFan Air Pressure 3.48 mmAqFan Noise ≤38.71 dB(A)Fan Connector 4-pin PWMBearing Type Hydro BearingFan Rated Voltage 12 VDCFan Rated Current 0.22 AFan Power Consumption 2.64 WLED Type Addressable RGB LEDLED Connector 3-pin(+5V-D-G)LED Rated Voltage 5 VDCLED Power Consumption 2.4 W（PUMP）/ 2.1 W（FAN×2）Display Type LED Digital DisplayDisplay Module Rated Voltage 5 VDCDisplay Module Rated Current 0.08 A±10%Display Module Power Consumption 0.4 WDisplay Area 53.9x49.15 mm
