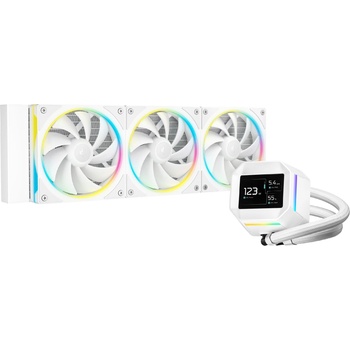

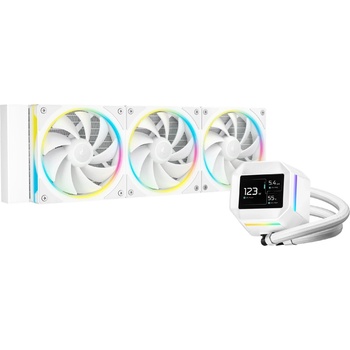

Deepcool Water Cooling LM360 WH (R-LM360-WHDMMC-1)

DeepCool LM360 WH



DeepCreative: THE CONTROL CENTER

Take full control of your LM cooler with DeepCreative software. Monitor essential system information in real time, personalize the screen display, or switch to Zen Mode for a distraction-free experience when performance matters most. Screen brightness and display orientation can also be adjusted to suit your setup.



Real-Time Monitoring

Media Mode

Zen Mode

CPU Monitoring

GPU Monitoring

Power Monitoring



View essential system information with a structured layout. Highlight key stats like CPU temperature, power consumption, or time in the primary display area, while secondary areas show additional metrics like GPU status and memory usage.

Efficiency in motion

Equipped with a long-life hydro bearing, the included FL12 SE fans delivering steady airflow and reliable cooling over long-term use. Distinctive lighting effects bring vivid colors to every edge, working in harmony with your system’s lighting setup.



400~2400 RPM ±10%

Fan Speed



66.23 CFM

Airflow



3.27 mmAq

Static Pressure



≤36.07 dB(A)

Fan Noise

Cleanly focused 2.4" LCD

See more from any angle with the 2.4" IPS display. A 320×240 resolution ensures crisp visuals, while enhanced color accuracy and screen stability deliver consistent clarity throughout. The soft perimeter lighting adding structured contrast to the minimal design.

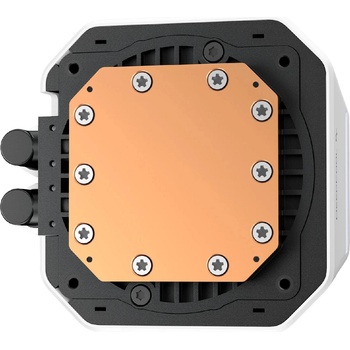

Gen 6 water pump with PWM control

The LM360 WH features DeepCool's newly developed 6th-generation pump, engineered for greater thermal efficiency and quieter performance on today's high-end CPUs. A 3-phase, 6-slot, 4-pole motor with FOC control powers the pump from 2,500 to 3,400 RPM with precision and stability.



Anti-Leak Technology

DeepCool’s patented Anti-Leak Technology helps maintain internal pressure balance within the liquid cooling system. A built-in valve releases excess pressure once it exceeds ambient levels, reducing the risk of leakage and improving long-term operational stability.



Simplified installation

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LM360 WH to the latest mainstream CPUs is included in the box, so you are ready to go.



Application For

Intel

LGA 1851/1700/1200/1151/1150/1155

AMD< /p>

AM5/AM4



Tec hnical Specs



Net Weight 1729 gRadiator Dimensions 402×120×27 mm(L×W×H)Radiator Material AluminumTube length 410 mm(L×W×H)Pump Dimensions 90×80×63 mm(L×W×H)Pump Speed 2500~3400 RPM±10%Pump Connector 4-pin PWMPump Rated Voltage 12 VDCPump Rated Current 0.29 APump Power Consumption 3.48 WFan Dimensions 120×120×25 mm(L×W×H)Fan Speed 400~2400 RPM±10%Fan Airflow 66.23 CFMFan Air Pressure 3.27 mmAqFan Noise ≤36.07 dB(A)Fan Connector 4-pin PWMBearing Type Hydro BearingFan Rated Voltage 12 VDCFan Rated Current 0.18 AFan Power Consumption 2.16 WLED Type Addressable RGB LEDLED Connector 3-pin(+5V-D-G)LED Rated Voltage 5 VDCLED Power Consumption 1.5 W（PUMP）/ 3.5 W（FAN×3）
