Delock 64138

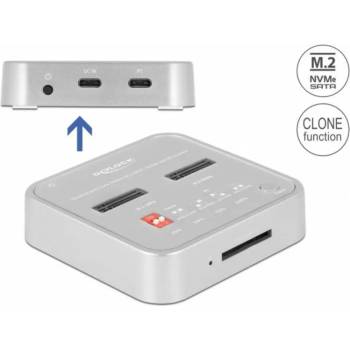

This docking station by Delock enables the installation of an M. 2 NVMe and an M. 2 SATA SSD as well as an SD Express memory card and it can be connected via USB to the PC, laptop, tablet or smart phone.

SD Express slot
The SD Express slot allows to read and write SD Express memory cards. SD, SDHC and SDXC memory cards with UHS-I and UHS-II can also be used.

Simultaneous using of all ports
All three memories can be used simultaneously.

Clone Function without PC
The built-in clone function allows to clone memory without using a PC. It is possible to clone from NVMe to SATA, SD to NVMe, SD to SATA and SATA to NVMe.

Ideal test equipment
The memory is simply plugged into the robust housing and can be used immediately. No screws, tools or accessories are required, which means that the SSD can be changed quickly.

Power supply included
The power supply, which is included, will be connected to the USB-C power connector and thus supplies the docking station and all connected memories with power.

• Connectors:
  1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C female
  2 x 67 pin M. 2 key M slot
  1 x SD Express slot
  1 x USB Type-C female (power supply)
• Chipset: JMicron JMS581
• Supports M. 2 modules with key M or key B+M based on PCIe (NVMe)
• Supports M. 2 modules with key B+M based on SATA
• Supports NVM Express (NVMe)
• Supports S. M. A. R. T.
• Supports TRIM
• Supports DevSleep
• Supports Native Command Queuing (NCQ)
• Data transfer rate up to 10 Gbps
• Supports SD 3.0 (UHS-I), SD 4.0 (UHS-II), SD 5.1 (UHS-II V90), SD 7.1
• Supports UASP
• LED indicator for power, access and copy status
• Bootable
• Function key:
  1 x Clone button
  1 x On / Off switch
  1 x DIP switch for clone mode
• Dimensions (LxWxH): ca. 76 x 79 x 18 mm
• Hot Plug, Plug & Play

Power supply specification

• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 5.0 V / 3.0 A

System requirements

• Android 10.0 or above
• Chrome OS 90.0 or above
• iPad Air (4th Generation) or above
• Linux Kernel 5.8 or above
• Mac OS 11.2. 3 or above
• Surface Pro 7
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port or
• Device with a free USB Type-C port or with a free Thunderbolt 3 port

Tech specs:

General

Func tion

bootable
Clone Function


Supported operating system

Linux Kernel 5.8. 0 or above
Surface Pro 7
Windows 10 32-Bit
Windows 10 64-Bit
Windows 8.1 32-Bit
Windows 8.1 64-Bit
Android 10.0 or above
iPad Air (4th Generation) or above
Mac OS 11.2. 3 or above
Chrome OS 90.0 or above


LED indicator

power, access and copy status


Slot

PCIe
SATA


Maximum height of the components on the module

1.5 mm application of double-sided assembled modules supported


Interface

Connector 1

1 x USB 10 Gbps USB Type-C female

Connector 2

2 x 67 pin M. 2 key M slot
connector 3

1 x USB Type-C female (power supply)

connector 4

1 x SD Express slot


Technical characteristics

Data transfer rate

10 Gbps
