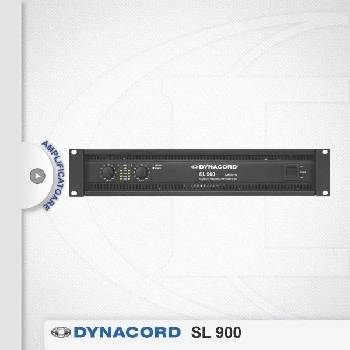

Dynacord SL 900

Power Amplifier 2x450W, Class AB Topology, 2HU These amplifiers offer high, stable power output and a high efficiency factor on the high performance level and are therefore the ideal choice for driving a multitude of mobile and club systems. SL series power amplifiers are equipped with a comprehensive protection package and dynamic limiters. The integrated, switchable Low-Pass Notch filter (a typical DYNACORD special feature) corrects the frequency response and optimizes the transient behaviour of loudspeakers. Maximum Midband Output Power, THD = 1%, 1 kHz, Dual Channel 2 Ohm - 650 W, 4 Ohm - 450 W, 8 Ohm - 270 W Maximum Single Channel Output Power, Dynamic-Headroom, IHF-A 2 Ohm - 1150 W, 4 Ohm - 660 W, 8 Ohm - 350 W Maximum Bridged Output Power, THD = 1%, 1 kHz 4 Ohm - 1300 W, 8 Ohm - 900 W Input Sensitivity, rated power @ 8 Ohm, 1 kHz + 2,2 dBu (1,0 Vrms) Maximum Input Level +21 dBu (8.69 Vrms) Voltage Gain, ref. 1 kHz 32.0 dB Frequency Response, ref. 1 kHz 10 Hz... 40 kHz (±1 dB) Output Stage Topology Class AB Dimensions (W x H x D), mm 483 x 88.1 x 421.5 Weight 12.6 kg (27.8 lbs)
