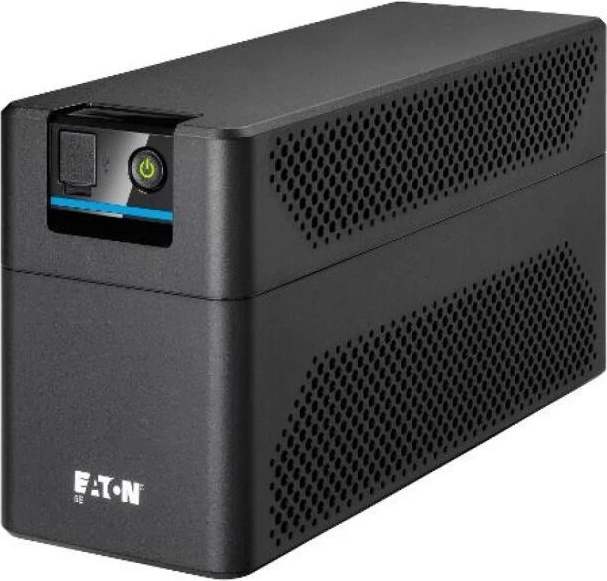

Eaton 5E700I 700VA

Eaton 5E Gen2

The Eaton 5E Gen2 UPS combines proven high performance and quality with affordable pricing to offer cost-effective, reliable protection against power outages and bad power quality. Suitable for home use or for equipment in small business and professional environments, this latest version of our 5E line interactive UPS now also offers national outlets flexibility plus the convenience of permanently recharged batteries (even when off) and the ability to start without mains power (cold start).



Easy application connection and protection

A perfect fit for any local plug type thanks to national outlet formats (4 or 6 IEC and 2 or 4 for FR, DIN/IT, BS). Eaton's 5E Gen2 UPS offers single-product simplicity in multiple residential and commercial environments.

Greater tolerance of grid fluctuations

All kinds of influences can upset grid voltage at any time. Features double-boost line interactive topology (AVR) for wider input voltage window (under and overvoltage: 140 – 300 V) to save battery power in the event of power outage.



Specifications:

Product Length/Depth

288 mm

Product Height

148 mm

Product Width

100 mm

Product Weight

4.14 kg

Compliances

CB

LVD Directive

EMC Directive

RoHS Directive

Packaging Directive

WEEE Directive

Batteries Directive

Certifications

IEC/EN 62040-1

IEC/EN 62040-2

CE

EAC

UKCA

Cm

Ukr

IEC/EN 62040-3

Product specifications

Secondary frequency - max

60 Hz

Wattage

360 W

Form factor

Tower

Input connection

C14

Input voltage - min

140 V

Output voltage - max

257 V

Secondary frequency - min

50 Hz

Battery type

Sealed, lead-acid

Efficiency

95

Special features

Automatic Voltage Regulation (AVR)

Saves space with a compact tower design

Construction type

Free standing model

Output voltage - min

195 V

Color

Black

Output voltage range

195-257 V

Topology

Line-interactive

Surge protection

Yes

Input nominal voltage

230V default (220/230/240V)

Input frequency range

45-63 Hz

Input voltage - max

300 V

Voltage type

AC

Phase (output)

1

Battery management

Automatic battery test, deep-discharge protection, cold-start capable

Number of Outputs C13

4

Operating temperature - min

0 °C

VA rating

700 VA

Receptacle

(4) C13

Phase (input)

1

Package contents

(2) IEC-IEC output cables

Quick start

Safety instructions

Feed type

1

Runtime graph

View runtime graph

User interface

LEDs

Battery quantity

1

Operating temperature - max

40 °C

Voltage

230V

Temperature range

0° to 40°C (32° to 104°F)

Relative humidity

0-90% non-condensing

Output apparent power

700 VA

Output frequency

50/60 Hz

Primary frequency - min

45 Hz

Battery rating

12 V / 7 Ah

Type

UPS

Output nominal voltage

230V

Input voltage range

140-300 V

Nominal frequency

50/60 Hz

Primary frequency - max

63 Hz
