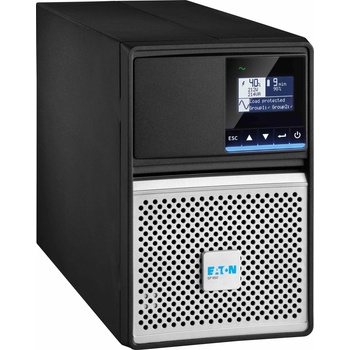

Eaton 5P 650i Gen2 (5P650IG2)

Eaton 5P 650i G2

Specs:
Product Length/Depth 345 mm
Product Height 233 mm
Product Width 150 mm
Product Weight 7.9 kg

Compliances
LVD Directive (CB)
EMC Directive
RoHS Directive
WEEE Directive
Packaging Directive
Batteries Directive
Certifications IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, UL 1778, CSA-C22.2, CE, UKCA, Cm, Ukr, KCC, cTUVus, BIS

Battery
Battery type Lead-acid maintenance-free (replaceable)
Battery replacement User replaceable
Battery quantity 1
Battery management ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
Battery rating 12 V / 9 Ah
Extended battery capability No

Electrical output
Voltage 230V
Receptacle (4) C13
Wattage 520 W
Output voltage range 230 V (+6%/-10%)
Output frequency 50/60 Hz
Output nominal voltage 230V default (200/208/220/230/240V)
Topology Line-interactive

Electrical input
Input connection C14
Input nominal voltage 230V default (200/208/220/230/240V)
Nominal frequency 50-60 Hz
Input voltage range 160-294 V (adjustable to 150 V-294 V)
Input frequency range
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

Communications
Communication
USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Dry contacts (2 outputs, optocoupler, RJ)
Ethernet interface No
Potential free switch contact Yes
Expansion slots One slot for optional communication card
Software compatibility Eaton Brightlayer Software suite
Type of interface Other

Environmental
Altitude 3000 m
Noise level
