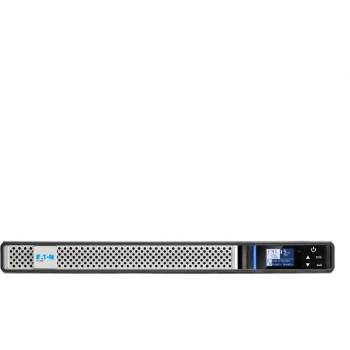

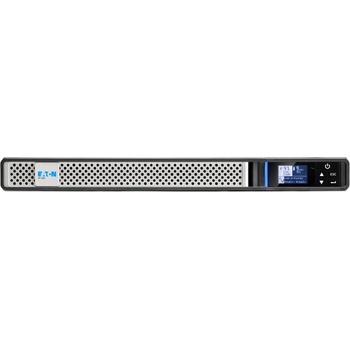

Eaton 5P 650iR Gen2 (5P650IRG2)

Eaton 5P 650i Rack 1U G2
5P650IRG2

Battery
Battery type: Lead-acid maintenance-free (replaceable)
Battery replacement: User replaceable
Battery quantity: 2
Battery management: ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
Battery rating: 6 V / 9 Ah
Extended battery capability: No

Electrical output
Voltage: 230V
Receptacle: (4) C13
Wattage: 520 W
Output voltage range: 230 V (+6%/-10%)
Output frequency: 50/60 Hz
Output nominal voltage: 230V default (200/208/220/230/240V)
Topology: Line-interactive

Electrical input
Input connection: C14
Input nominal voltage: 230V default (200/208/220/230/240V)
Nominal frequency: 50-60 Hz
Input voltage range: 160-294 V (adjustable to 150 V-294 V)
Input frequency range: 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

Communications
Communication:
USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Dry contacts (2 outputs, optocoupler, RJ)

Ethernet interface: No
Potential free switch contact: Yes
Expansion slots: One slot for optional communication card
Software compatibility: Eaton Brightlayer Software suite
Type of interface: Other

Environmental
Altitude: 3000 m
Noise level:
