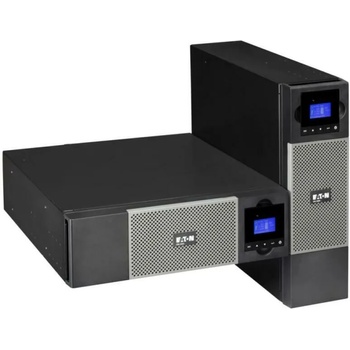

Eaton 5PX 3000i RT3U G2 (5PX3000IRT3UG2)

Eaton 5PX 3000i RT3U G2

PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY - MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
MAX NUMBER OF BATTERY PACKS
4
WATTAGE
3000 W
OUTPUT POWER FACTOR
1
FORM FACTOR
Rack/tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C20
INPUT VOLTAGE - MIN
150 V
OUTPUT VOLTAGE - MAX
240 V
SECONDARY FREQUENCY - MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Lead-acid maintenance-free (replaceable)
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)|Energy efficient, reduce energy and cooling costs|Delivers clean sinewave output|Provides more real power (watts) to protect more equipment with a Unity power factor (VA=W)|LCD display for real-time status and measurements|Long backup time with up to 4 optional EBM|Meter energy consumption (down to the managed outlet groups)|Versatile product for rack or tower installation|1 slot for optional com card (Network management card, Relay card or Network and Industrial card)|Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)|1 USB port + 1 serial port
OUTPUT VOLTAGE - MIN
200 V
COLOR
Black/silver
EXTENDED BATTERY CAPABILITY
Yes
OUTPUT VOLTAGE RANGE
230 V (+6%/-10%)
TOPOLOGY
Line-interactive
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
INPUT FREQUENCY RANGE
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
INPUT VOLTAGE - MAX
294 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
8
NUMBER OF OUTPUTS C19
2
VA RATING
3000 VA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
(8) C13, (2) C19
PHASE (INPUT)
1
PACKAGE CONTENTS
Input cable|Rack-mounting kit|(2) Supports for tower mounting|Cable locking system|USB cable|Serial cable|(2) IEC-IEC cables|Quickstart guide|Safety instructions
NOISE LEVEL
