Eaton 9E 3000i Rack2U (9E3000IR)

The Eaton 9E UPS gives IT managers an easy way to manage the power in their data center, without having to worry about cost, space or downtime. Developed specifically for IT managers, the 9E confronts typical data center problems head on. It addresses ROI, energy costs, remote management, and efficiency... giving you more time to focus on other important data center issues.

Efficient power managementWith an efficiency of up to 91% and an Eco mode that boosts efficiency to 97%, the Eaton 9E UPS ensures optimal power usage and reduced energy costs. Its power factor of 0.99 further maximizes the utility of electrical power, making it an ideal solution for energy-conscious businesses. Reliable battery technologyFeaturing a 9 Ah lead-acid battery with hot-swappable and sealed capabilities, this UPS provides dependable power backup. The technology allows for safe and easy maintenance, ensuring your operations are protected against power interruptions. Comprehensive connectivityEquipped with RS-232 and USB management interfaces, along with a communication slot for expansion, the Eaton 9E offers versatile connectivity options. This ensures seamless integration and management of the UPS within various IT environments. Advanced protection featuresThe Eaton 9E comes with an array of protection features including an auto shutdown circuit, deep discharge protection, and temperature-compensated battery charging. These features safeguard your equipment from power anomalies and extend the life of the UPS. Flexible installation optionsDesigned for both rack-mountable and freestanding setups, and including a rack mounting kit, this UPS offers flexibility in deployment. Its 2U height and compatibility with 19" racks make it an easy fit in any server room or data center.

Specifications:

Product Length/Depth 608 mmProduct Height 86.5 mmProduct Width 438 mmProduct Weight 31.3 kgCompliances CE Marked
TUVCertifications IEC/EN 62040-1
IEC/EN 62040-2
CEBattery type Sealed, lead-acidBattery replacement Replacable batteriesBattery quantity 6Battery management

• Temperature compensated charging method
• Automatic battery test
• Deep discharge protection

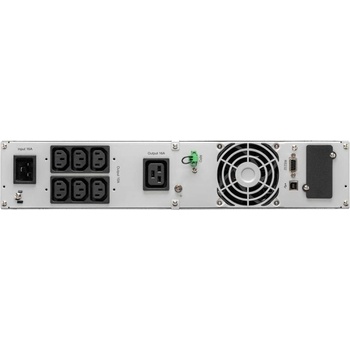

Battery rating 12 V / 9 AhExtended battery capability YesReceptacle (6) C13 + (1) C19Voltage 230VWattage 2700 WOutput power factor 0.9Output voltage range 220/230/240 V +/- 2%Output waveform Sine waveOutput nominal voltage 230V default (220/230/240V)Voltage distortion output (linear load) - max 3Feed type 1Topology Online/Double-conversionVA rating 3000 VAInput connection C14Input nominal voltage 230V default (220/230/240V)Nominal frequency 50/60 HzInput power factor >. 99Input cord length 1.8mInput frequency range 40-70 HzIncludes network card NoCommunication

• USB port (HID compliant)
• Serial port (RS232)
• Mini-terminal block for remote power off

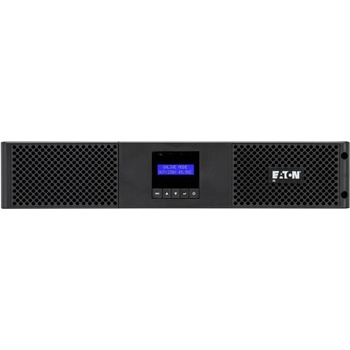

Ethernet interface NoUser interface Multilingual LCD displayPotential free switch contact YesExpansion slots One slot for optional communication cardSoftware compatibility Eaton Intelligent Power Manager, Eaton Intelligent Power ProtectorType of interface OtherAltitude 3000 mNoise level
