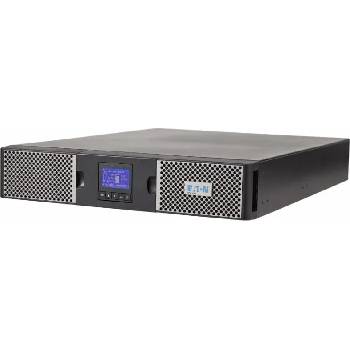

Eaton 9PX2000RT

Eaton 9PX 2000 RT 120V

BATTERY
BATTERY MANAGEMENT
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
BATTERY REPLACEMENT
Hot-swappable internal batteries and extended battery modules (EBMs)
BATTERY TYPE
Sealed, lead-acid
EXTENDED BATTERY CAPABILITY
Add up to 4 extended battery modules (EBM). Part number 9PXEBM72RT

ELECTRICAL OUTPUT
RECEPTACLE
(6) 5-20R, (1) L5-20R
OUTPUT POWER FACTOR
0.9
OUTPUT WAVEFORM
True sine wave
VOLTAGE
120V
VA RATING
2000 VA
WATTAGE
1800 W
OUTPUT NOMINAL VOLTAGE
120V default (100/110/120/125V)
TOPOLOGY
Online/Double-conversion

ELECTRICAL INPUT
INPUT CONNECTION
5-20P 5-20P
INPUT CORD LENGTH
8 ft
INPUT NOMINAL VOLTAGE
120V default (100/110/120/125V)
INPUT FREQUENCY RANGE
60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz
INPUT POWER FACTOR
>0.99 typical

COMMUNICATIONS
COMMUNICATION
MiniSlot + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot
EXPANSION SLOTS
(1) Mini-Slot (MS) expansion port. The following optional connectivity cards may be ordered separately. |Gigabit Network Card part number: NETWORK-M2|Modbus card part number: MODBUS-MS|Relay card part number: RELAY-MS
SOFTWARE COMPATIBILITY
Intelligent Power Software Suite
USER INTERFACE
Graphical display, 5-button programmable menu

ENVIRONMENTAL
ALTITUDE
0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
BTU RATING
Online: 578, Battery: 974
NOISE LEVEL
