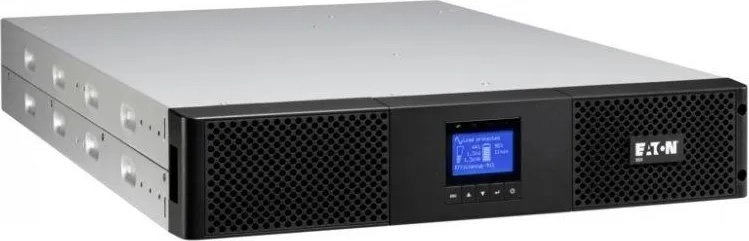

Eaton 9SX 3000I Rack2U (9SX3000IR)

Marketing DescriptionThe Eaton 9SX uninterruptible power system (UPS) protects your sensitive electronic equipment from the most common power problems, including power failures, power sags, power surges, brownouts, line noise, high voltage spikes, frequency variations, switching transients, and harmonic distortion. Power outages can occur when you least expect it and power quality can be erratic. These power problems have the potential to corrupt critical data, destroy unsaved work sessions, and damage hardware - causing hours of lost productivity and expensive repairs. Product Features

• True online double-conversion technology with high power density, utility frequency independence, and generator compatibility
• ABM technology that uses advanced battery management to increase battery service life, optimize recharge time, and provide a warning before the end of useful battery life
• Selectable high efficiency mode of operation
• Firmware that is easily upgradable without a service call
• Remote on/off control through Remote On/Off (ROO) and Remote Power Off (RPO) ports

GeneralDevice TypeUPS - Power Factor Correction (PFC) - rack-mountableHeight (Rack Units)2URack Size19Power DeviceUPS TechnologyOn-lineInput VoltageAC 200/208/220/230/240 VInput Voltage RangeAC 140 - 276 VFrequency Provided50/60 HzFrequency Required40 - 70 HzInput Connectors1 x power IEC 60320 C20 16APower Output Connectors Details8 x power IEC 60320 C13 10A
1 x power IEC 60320 C19 16AOutput VoltageAC 200/208/220/230/240 V 50/60 HzPower Capacity2700 Watt / 3000 VAPower Factor (PF)0.9BatteryTypeExpandableRun Time (Up To)6 min at 2500 WattsNetworkingRemote Management InterfaceRS-232, USBExpansion / ConnectivityInterfaces1 x management (RS-232) - 9 pin D-Sub (DB-9)
1 x management (USB) - 4 pin USB Type B
EPO (emergency power off) - mini terminal block
Relay output - mini terminal blockExpansion Slots1 (total) / 1 (free) x Expansion SlotMiscellaneousFeaturesAdvance Battery Management (ABM), LCD display, deep discharge protection, automatic self-test, temperature-compensated battery charging, 3-stage charging, double conversion, power measuringCompliant StandardsFCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-3, CSA C22.2, IEC 62040-2, cULus, EN 62040-2, EAC, RCM, EN 62040-3, IEC 62040-1, EN 62040-1Manufacturer WarrantyService & SupportLimited warranty - 2 yearsEnvironmental ParametersMin Operating Temperature0 °CMax Operating Temperature40 °CSound Emission45 dBDimensions & WeightWidth43.8 cmDepth60.8 cmHeight8.65 cmWeight26.5 kg
