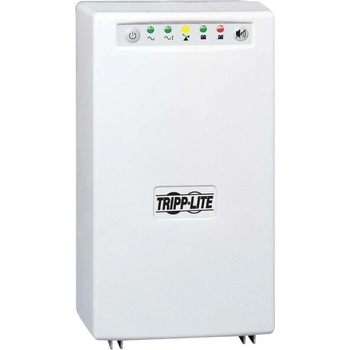

Eaton SMX1200XLHG 750W

Eaton Tripp Lite

Provides UL 60601-1 compliant, medical-grade 1kVA/750W power backup, ideal for use in patient-care vicinities. The built-in isolation transformer offers full isolation while maintaining AC surge protection in all modes.

• Supports a half load up to 27.5 minutes; full load up to 11 minutes
• Six IEC320 C13 hospital-grade outlets and IEC320 C14 hospital-grade plug
• Leakage current less than 100 microamps
• 340 joule surge suppression rating protects connected equipment
• Alarm mute/alarm quiet control is ideal for use around patients
• Approved to EN60601-1-2:2015, 4th Edition



Features

Provides Ideal UPS Backup in Healthcare Facilities


• Compliant with UL 60601-1 standards for use in patient-care vicinities, when plugged into a hospital-grade outlet
• Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise

Battery Backup and Full Surge Protection


• 27.5 minutes runtime for half load (375W); 11 minutes for full load (750W)
• All six hospital-grade outlets provide surge protection rated to 340 joules
• EMI/RFI noise filtering ensures equipment runs smoothly without line noise interference
• Resistant to electrostatic discharge

LEDs and Audible Alarms Keep You Aware of Power Status


• Indicator lights on the front of the unit show you when the UPS is on and supplying utility power, when operating in voltage correction mode or in battery mode, relative load level and low-battery warning.





Specifications

OVERVIEW

UPS TypeLine-Interactive

INPUT

Input PhaseSingle-PhaseRated input current (Maximum Load)5ANominal Input Voltage(s) Supported230V ACUPS Input Connection TypeC14 inletUPS Input Cord Length (ft. )0.50UPS Input Cord Length (m)0.2Recommended Electrical Service10A 230VVoltage Compatibility (VAC)230

OUTPUT

Output Capacity (VA)1000Output Capacity (kVA)1Output Capacity (Watts)750Output Capacity (kW)0.75Nominal Voltage Details230v nominal inverter output voltageFrequency Compatibility50 / 60 HzFrequency Compatibility DetailsAutomatic frequency selectionOutput Voltage Regulation (Line Mode)-18%, +8%Output AC Waveform (Battery Mode)PWM sine waveNominal Output Voltage(s) Supported220V; 230V; 240VOutput Receptacles(6) C13

BATTERY

Battery TypeValve Regulated Lead Acid (VRLA)Runtime Full Load (min. )   Runtime Full Load (min. )  11 min. (750W)Runtime Half Load (min. )  27.5 min. (375W)Expandable RuntimeYesExpandable Runtime DescriptionSupports extended runtime with optional  BP36V15-2U  (limit 1) and  BP36V42-3U  external battery pack (multi-pack compatible)External Battery Pack Compatibility  BP36V15-2U  (limit 1);  BP36V42-3U  (multi-pack compatible);  BP36V27-2US  (multi-pack compatible)DC System Voltage (VDC)36Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90%Battery AccessBattery access door allows hot swap battery replacement without powering connected equipment offInternal UPS Replacement Battery CartridgeRBC36SLTTypical Battery Lifespan3-6 years, depending on usage
