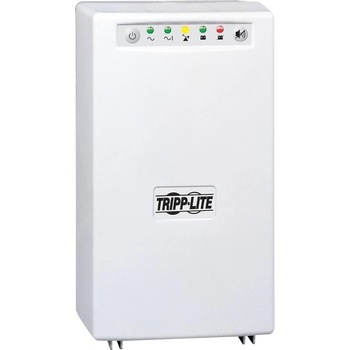

Eaton SMX700HG 700VA

Eaton Tripp Lite SMX700HG



Provides UL 60601-1 compliant, medical-grade 700VA/450W power backup, ideal for use in patient-care vicinities. The built-in isolation transformer offers full isolation while maintaining AC surge protection in all modes.

• Supports a half load up to 36 minutes; full load up to 14.5 minutes
• Six IEC320 C13 hospital-grade outlets and IEC320 C14 hospital-grade plug
• Leakage current less than 100 microamps
• Approved for use within the Patient Care Vicinity
• Approved to EN60601-1-2:2015, 4th Edition
• 340 joule surge suppression rating protects connected equipment

• Alarm mute/alarm quiet control is ideal for use around patients





Features

Provides Ideal UPS Backup in Healthcare Facilities


• Compliant with UL 60601-1 standards for use in patient-care vicinities, when plugged into a hospital-grade outlet
• Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise

Battery Backup and Full Surge Protection


• 36 minutes runtime for half load (225W); 14.5 minutes for full load (450W)
• All six hospital-grade outlets provide surge protection rated to 340 joules
• EMI/RFI noise filtering ensures equipment runs smoothly without line noise interference
• Resistant to electrostatic discharge

LEDs and Audible Alarms Keep You Aware of Power Status


• Indicator lights on the front of the unit show you when the UPS is on and supplying utility power, when operating in voltage correction mode or in battery mode, relative load level and low-battery warning
• Audible alarms alert you to power failure, overload and low battery conditions; the alarm’s mute/quiet mode ensures patients are not disturbed

Saves Your Files, Even When You’re Away


• Works with PowerAlert software (available as a free download) to enable safe, unattended system shutdown and files saves during prolonged power failures

• Connects to your computer via either the DB9 port or USB port





Specifications

OVERVIEW

UPS TypeLine-Interactive

INPUT

Input PhaseSingle-PhaseRated input current (Maximum Load)3.6ANominal Input Voltage(s) Supported230V ACUPS Input Connection TypeC14 inletUPS Input Cord Length (ft. )0.50UPS Input Cord Length (m)0.2Recommended Electrical Service10A 230VVoltage Compatibility (VAC)230

OUTPUT

Output Capacity (VA)700Output Capacity (kVA)0.7Output Capacity (Watts)450Output Capacity (kW)0.45Nominal Voltage Details230v nominal inverter output voltageFrequency Compatibility50 / 60 HzFrequency Compatibility DetailsAutomatic frequency selectionOutput Voltage Regulation (Line Mode)-18%, +8%Output AC Waveform (Battery Mode)PWM sine waveNominal Output Voltage(s) Supported220V; 230V; 240VOutput Receptacles(6) C13

BATTERY

Battery TypeValve Regulated Lead Acid (VRLA)Runtime Full Load (min. )  14.5 min. (450W)Runtime Half Load (min. )  36 min. (225W)DC System Voltage (VDC)36Battery Recharge Rate (Included Batteries)Less than 3.6 hours from 10% to 90% (typical, full load discharge)Battery AccessBattery access door allows hot swap battery replacement without powering connected equipment offInternal UPS Replacement Battery CartridgeRBC36SLTTypical Battery Lifespan3-6 years, depending on usage
