EDIMAX BR-6476AC AC1200

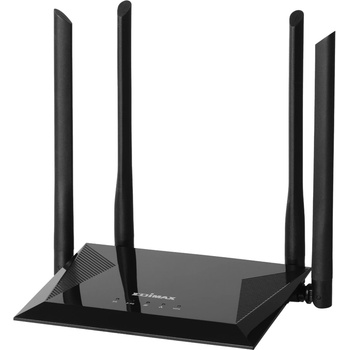

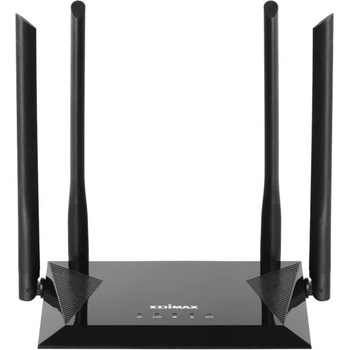

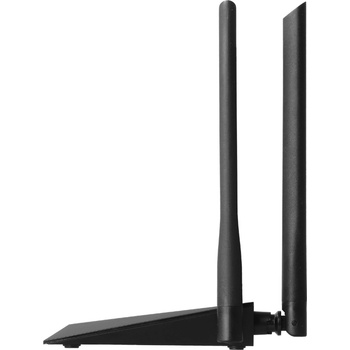

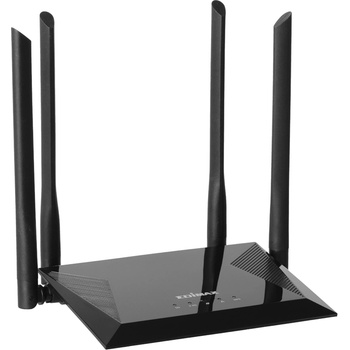

Edimax BR-6476AC









The Most Widely Used Wi-Fi Standard

The BR-6476AC 4-in-1 router adopts the most widely used Wi-Fi 5 standard: IEEE 802.11ac and provides significantly improved coverage with four high-gain antennas. Operating as a router, access point, range extender or WISP, the BR-6476AC’s flexibility can handle that of many demanding multimedia applications. Impressive performance makes the BR-6476AC an excellent solution for large homes or offices.













Upgrade your Network to an 11ac Wi-Fi

The BR-6476AC upgrades your network to 11ac, which operates in both 5GHz and 2.4GHz band. Wi-Fi 5, the 802.11ac, is the most compliant Wi-Fi standard for current home wireless networking. With combined wireless speeds of up to 1200Mbps, the device provides better speeds and coverage. You can run multiple bandwidth-intensive applications in a large home or office. The router is also backward compatible with 802.11 b/g/n to ensure compatibility with legacy Wi-Fi devices.







Concurrent Dual-Band Wi-Fi Connectivity

The BR-6476AC optimizes your Wi-Fi connectivity speed by operating both 2.4GHz and 5GHz that ensures an interference-free performance. While you’re enjoying HD video streaming or playing online games over the 5GHz band, other tasks, such as emailing, online chatting, or web surfing can be well handled by the 2.4GHz simultaneously.







4-in-1 Mode

The BR-6476AC can work as 4 major modes for wireless networking, including router, access point, range extender, and WISP modes. You can use it as a router for Internet sharing, as an access point for switching a wired connection into a wireless network, extending the signals as a range extender, or sharing a wireless Internet connection with all your devices. Switch modes according to your environment or needs by using the easy smart setup wizard.









4 High-Gain Antennas for Maximum Coverage

Employing four external high-gain fixed antennas, the BR-6476AC provides powerful 2.4GHz and 5GHz dual-band signal strength and enhanced Wi-Fi range, providing good signal coverage across your large home or office.







Tech specs:

HARDWAREInterface

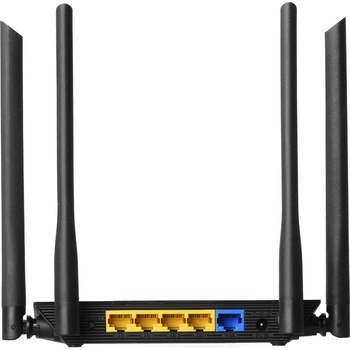

• 1 x RJ-45 10/100 Mbps WAN port
• 4 x RJ-45 10/100 Mbps LAN port

Button

• Reset / WPS Button

LED Indicator

• 5G
• 2.4G
• WAN
• LAN
• WPS

Antenna

• 4 x antenna (2 x 2.4GHz and 2 x 5GHz)
• ​Fixed Omni Directional Antenna

Memory

• 8 MB ROM
• 64 MB RAM

Power Adapter

• DC 12V, 1.0A

Dimensions / Weight

• 153(W) mm x 106(D) mm x 24(H) mm
• 474g

WIRELES SStandards

• 802.11 b/g/n/ac

Frequency

• 5GHz and 2.4GHz concurrent dual-band

Maximum Data Speed

• 5GHz: 867Mbps
• 2.4GHz: 300Mbps

Receive Sensitivity

• 11AC:
  • 20M mode≤ -57dBm,
  • 40M mode≤ -54dBm,
  • 80M mode≤ -51dBm
• 11N:
  • 11b _11Mbps: ≤ -79dBm,
  • 11g_54Mbps: ≤ -68dBm,
  • HT20_MCS7: ≤ -67dBm,
  • HT40_MCS7: ≤ -64dBm

Transmit Power

• 11N: 16dBm (2.4GHz)
• 11G: 17dBm (2.4GHz)
• 11AC: 13dBm (5GHz)

Security

• WPA-Personal, WPA2-Personal, WPA-Personal/WPA2-Personal, wireless access control, Support hidden SSID

SOFTWARE FEATURESManagement

• Management
• Remote Management
• System Status and Security log
• Firmware Upgradable
• Smart Setup
• No Drivers Required.

WAN Setting

• Basic Setting
• Security Setting
• Access Control
• WPS

Virtual Setting

• Port Range, DMZ, UPnP

DHCP

• DHCP Server
• Static IP Address Binding
• DHCP Client List

Security Setting

• URL Filter
• MAC Filter
• Client
• WAN ping

Operation Mode

• Wi-Fi Router
• Access Point
• Extender
• WISP
