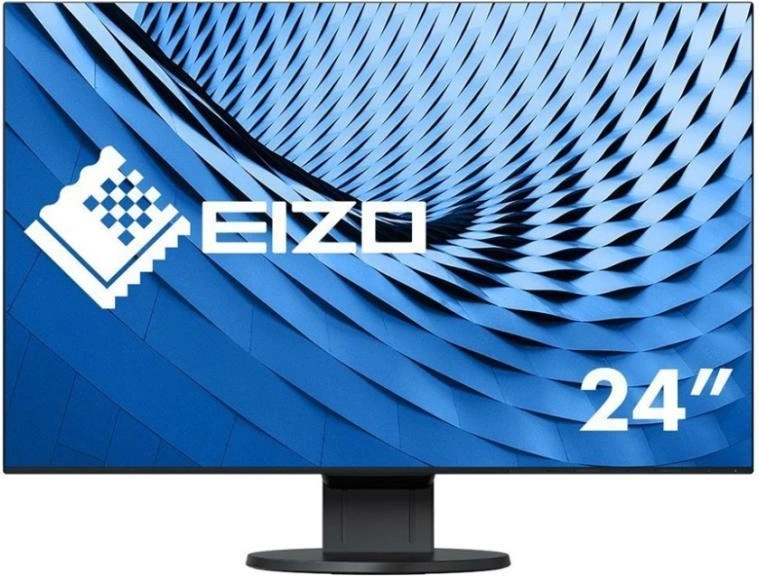

EIZO FlexScan EV2456

Монитор EIZO FlexScan EcoView Ultra-Slim EV2456-BK, IPS, 24.1 inch, Wide, WUXGA, D-Sub, DVI-D, HDMI, DisplayPort, Бял



Model Variations With FlexStand, Without Stand Cabinet Color White Panel Type IPS Backlight LED Size 24.1" / 61.1 cm Native Resolution 1920 x 1200 (16:10 aspect ratio)7 Viewable Image Size (H x V) 518.4 x 324.0 mm Pixel Pitch 0.270 x 0.270 mm Display Colors 16.77 million Viewing Angles (H / V, typical) 178°, 178° Brightness (typical) 350 cd/m2 Contrast Ratio (typical) 1000:1 Response Time (typical) 5 ms (Gray-to-gray) Video Signals Input Terminals D-Sub mini 15 pin x 1, DVI-D 24 pin x 1 (with HDCP), HDMI x 1 (with HDCP), DisplayPort x 1 (with HDCP) Digital Scanning Frequency (H / V) DVI: 31 - 76 kHz, 59 - 61 Hz DisplayPort: 31 - 76 kHz, 59 - 61 Hz HDMI: 15 - 76 kHz, 49 - 51 Hz and 59 - 61 Hz Analog Scanning Frequency (H / V) 31 - 81 kHz, 55 - 76 Hz Sync Formats Separate USB Function 1 port for monitor control 2-port USB hub Standard USB 3.0 Audio Speakers 1.0 W +1.0 W Input Terminals 3.5 mm stereo jack Output Terminals 3.5 mm headphone jack Sound Adjustment Volume, Source (DisplayPort, HDMI) Power Power Requirements AC 100 - 240 V, 50 / 60 Hz Maximum Power Consumption 44 W Typical Power Consumption 11 W Power Save Mode Less than 0.5 W Power Management Power Save (VESA DPM, DisplayPort Rev. 1.1a, and DVI DMPM) Features & Functions Preset Modes Color mode (Paper, Movie, sRGB, User1, User2, DICOM) Auto EcoView Yes OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish Physical Specifications Dimensions (Landscape, W x H x D) 531 x 351.4 - 510.1 x 190 mm Dimensions (Without Stand, W x H x D) 531 x 341.9 x 45.5 mm Net Weight 5.7 kg / 12.6 lbs Net Weight (Without Stand) 3.7 kg / 8.2 lbs Height Adjustment Range 158.6 mm Tilt 35° Up, 5° Down Swivel 344° Pivot 90°(both clockwise and counter clockwise) Hole Spacing (VESA Standard) 100 x 100 mm Environmental Requirements Operating Temperature 5 - 35 °C Operating Humidity (R. H. , non condensing) 20 - 80 % Certifications & Standards (Please contact EIZO for the latest information. ) TCO Displays 7, EPEAT Gold (US), TUV/Ergonomics, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, EAC Supplied Accessories (May vary by country. Please contact EIZO for details. ) AC power cord, signal cable (DisplayPort - DisplayPort), USB cable, cable cover, CD-ROM (PDF user's manual), setup guide Warranty Five Years Zero bright sub-pixels for six months from date of purchase for purchases made on September 1, 2015 or later. Dimension Drawing PDF
