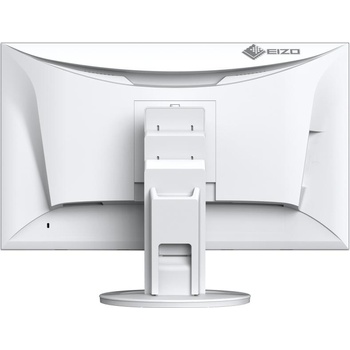

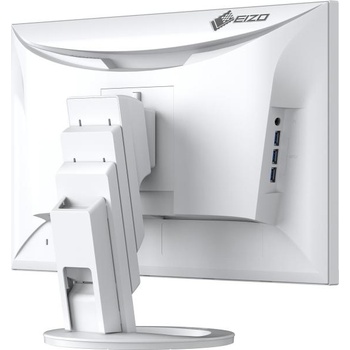

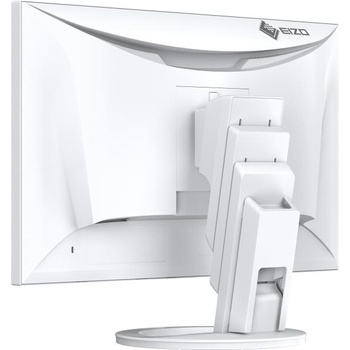

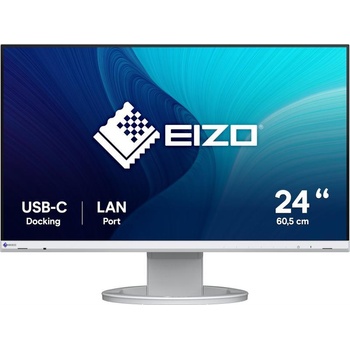

EIZO FlexScan EV2490

EIZO EV2490-WT

Case colour: White
Areas of application: Office, Gaming
Product line: FlexScan
Screen size [in inches]: 23.8
Screen size [in cm]: 60.5
Format 16:9
Viewable image size (width x height): 527 x 296
Ideal and recommended resolution: 1920 x 1080 (Full HD)
Pixel pitch [mm]: 0.275 x 0.275
Pixel density [ppi]: 93
Resolution supported: 1920 x 1080 (Full HD), 1680 x 1050, 1280 x 1024, 1024 x 768, 800 x 600, 720 x 400, 640 x 480
Panel technology: IPS
Max. viewing angle horizontal: 178°
Max. viewing angle vertical: 178°
Number of colours or greyscale: 16.7 million colours (USB-C, 8 Bit), 16.7 million colours (DisplayPort, 8 Bit), 16.7 million colours (HDMI, 8 Bit)
Colour palette/look-up table: 1.06 billion colour tones / 10 Bit
Max. colour space (typical): sRGB
Max. brightness (typical) [in cd/m2]: 250
Max. dark room contrast (typical): 1000:1
Response time grey-grey alternation (typical) [in ms]: 5
Max. refresh rate [in hertz]: 60
Backlight: LED

USB-C docking: Yes
LAN/RJ-45: Yes
KVM switch: Yes
Preset colour/greyscale modes: User1, User2, sRGB, Paper, Movie, DICOM
DICOM tone curve: Yes
RadiCS application classes: VIII
Auto EcoView: Yes
EcoView Index: Yes
EcoView Optimizer: Yes
Overdrive: Yes
No flickering thanks to hybrid controls: Yes
Signal range amplifier (HDMI): Yes
HDCP Decoder: Yes
Input signal identification: Yes
Built-in speakers: Yes
OSD language: de, en, fr, es, it, se, ja, zh
Adjustment options: Brightness, Contrast, Gamma, All EcoView functions, Colour saturation, Colour temperature, Colour mode, Signal input, OSD language, Scaling, Volume
Button Guide: Yes
Integrated power unit: Yes

Signal inputs: USB-C (DisplayPort Alt Mode, HDCP 1.3), DisplayPort (HDCP 1.3), HDMI (HDCP 1.4)
Signal outputs/Daisy chain compatibility: USB-C
USB specification: USB 3.1 Gen 1
USB upstream ports: 1 x type C (DisplayPort Alt Mode, LAN, 70 W max. ), 1 x type B
USB downstream ports: 1 x type C (DisplayPort Alt Mode, 15 W max. ), 3 x type A
LAN standards: RJ-45 (LAN pass through), IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3(10BASE-T)
Video signal: USB-C, DisplayPort, HDMI (RGB, YUV)
Audio input: USB-C, DisplayPort, HDMI
Audio output: 3.5 mm stereo jack
Frequency: USB-C: 31-68 kHz/59-61 Hz; DisplayPort: 31-68 kHz/59-61 Hz; HDMI: 31-68kHz, 49-51 Hz/59-61 Hz

Power consumption (typical) [in watt]: 11
Maximum Power Consumption [in watt]: 155 ( at maximum brightness with all signal inputs and USB ports in use)
Power Save Mode [in watt]: 0.5
Power consumption off [in watt]: 0
Energieeffizienzklasse: C
Energy consumption/1000h [in kWh]: 9
Power supply AC 100-120 V / 200-240 V, 50/60 Hz
Power management
Dimensions [mm]: 537,8 x 332,4 - 523,6 x 230
Weight [in kilograms] 7.2
Dimensions without stand [mm] 531 x 344 x 54
Weight without stand [in kilograms]: 4.5
Swivel 344°
Incline forward/backward: 5 ° / 35 °
Pivot: 90° (clockwise and anti-clockwise)
Height adjustment range [mm] 191.2
Hole spacing: VESA standard 100 x 100 mm
Certification: CE, UKCA, CB, TCO Certified Generation 9, EPA ENERGY STAR ®, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307)**, TÜV/Blue Low Light Content, TÜV/Flicker Free, EPEAT 2018 (US), cTÜVus, EAC, PSE, FCC-B, CAN ICES-3 (B), RCM, VCCI-B, CCC, RoHS, China RoHS, WEEE
4995047063322
