EKWB EK-Nucleus AIO CR240 Lux D-RGB White (EKWB3831109897843)

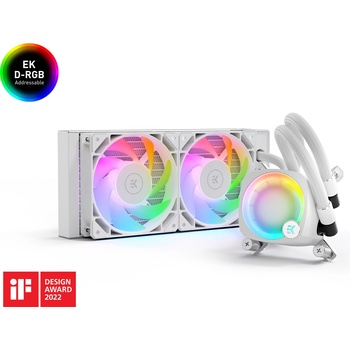

The EK-Nucleus AIO CR240 Lux D-RGB - White is an all-in-one liquid cooling solution offering a stylish fan-like gradient lighting effect on the pump unit to suit your needs for contemporary addressable RGB aesthetics with an all-around white color scheme. It is designed to fit the most popular white cases on the market today and features a double fan setup with a slim 240mm radiator. Compatible with most modern processors, it is also ready for the next-gen Intel socket.



Addressable RGB Lighting

Customize your all-in-one system to match your setup with its fully addressable RGB lighting effects. This closed-loop liquid CPU cooler offers a plug-and-play solution with a fan-like D-RGB lighting effect around the pump top for all who search for that perfect RGB AIO aesthetics.

This product is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the addressable RGB (D-RGB) header.

Rotatable Pump Top

The top allows you to re-orient the D-RGB EK badge no matter in which direction the cooler is installed. The orientation can be changed in 90° increments, so if the cooler is installed upside down, rotate it 180 degrees to display the logo right side up. Regardless of the angle needed to install the AIO, it will always offer clean and aligned aesthetics.

New Positioning of Rotary Fittings

The AIO CR240 Lux comes pre-installed with reinforced and sleeved rubber tubing, now featuring finer threads. The fittings are covered with an aesthetic white radiator cover at the connection of the tubing and the radiator to ensure a sleek design and flushed line with the added fans.



Technical Specifications

-Radiator Dimensions: 281 x 124 x 27 mm

-Radiator Material: Aluminum

-Fan Compatibility: 120 mm

-Pump Unit Dimensions: 82.3 x 69.2 x 61.6 mm

-Pump Unit Material: ABS housing, ABS top ring

-Pump Speed Range: 3100 RPM ± 10%

-Pump PWM Range: 20 - 100%

-Pump Unit RGB Type: 5V Digital (Addressable)

-Pinout: 5V, D, Empty, Ground Pump RGB Cable Length: 500 mm

-Tubing Material: Ultra-Low Evaporation Rubber with Nylon Braided Sleeve

-Tubing Length: 370 mm

-Fan Dimensions: 120 x 120 x 25mm

-Fan Speed Range: 550 - 2300 ± 10%

-Fan Noise Level: 36 dB (at maximum speed)

-Fan Air Flow: 72 CFM = 122,33 m³/h (at maximum speed)

-Fan RGB Type: 5V Digital (Addressable) Pinout: 5V, D, Empty, Ground

System Requirements:

-4-Pin PWM Header for pump and fan operation

-3-Pin Addressable 5V D-RGB header



Compatible CPU Sockets:

- Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066 + Next-gen Intel Socket, 1700

- AMD Socket: AM4, AM5
