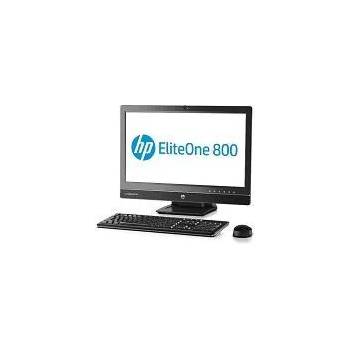

HP EliteOne 800 G1 AiO H5T92EA

HP 800EO AiO "H5T92EA"

Form Factor: All-in-one

Operating System:
Windows 8 Pro 64
Windows 8 64
Windows 7 Ultimate 64
Windows 7 Professional 32
Windows 7 Professional 64
Windows 7 Professional 32 (available through downgrade rights from Windows 8 Pro 64)
Windows 7 Professional 64 (available through downgrade rights from Windows 8 Pro 64)
Windows 7 Home Premium 32
Windows 7 Home Premium 64
Windows 7 Home Basic 32
SUSE Linux Enterprise Desktop 11
FreeDOS

Display: 58,4 cm (23") diagonal IPS widescreen WLED backlit anti-glare LCD; with or without Projected Capacitive Touch Panel option; Orientation designed to operate in portrait or landscape

Processor Family: Intel® Core i7 processor; Intel® Core i5 processor

Processor: Intel® Core i7-4770S with Intel HD Graphics 4600 (3.1 GHz, 8 MB cache, 4 cores); Intel® Core i5-4670S with Intel HD Graphics 4600 (3.1 GHz, 6 MB cache, 4 cores); Intel® Core i5-4570S with Intel HD Graphics 4600 (2.9 GHz, 6 MB cache, 4 cores)

Chipset: Intel® Q87 Express

Memory: Up to 16 GB 1600 MHz DDR3 SDRAM

Memory slots: 2 SODIMM

Storage: Internal drive bays One 6,35 cm (2.5’’)
External drive bays One 13,3 cm (5.25")
320 GB, up to 500 GB, SATA (7200 rpm)
120 GB, up to 160 GB, SATA SSD
up to 256 GB, SATA SE SSD
up to 500 GB, SATA SED
500 GB, up to 1 TB, SATA SSHD

Removable Media: Slim Tray-load DVD-ROM; Slim Tray-load SuperMulti DVD writer; Slim Tray-load SATA BDXL Blu-ray writer

Graphics: Integrated: Intel HD Graphics 4600; Discrete: AMD Radeon HD 7650A

Audio: DTS Studio Sound; Realtek ALC 3228 Audio – 16 & 24-bit PCM; High performance integrated stereo speakers; Volume control and mute buttons; Stereo headphone jack; Microphone in; Stereo line
out; Integrated 2.0 MP webcam (up to 30 frames/sec ) & dual microphone array (optional)

Communications: Integrated Intel® i217LM Gigabit Network Connection; Optional: Intel® 802.11a/b/g/n wireless 6205 PCIe minicard; HP 802.11a/b/g/n wireless PCIe minicard with Bluetooth Combo; HP Module with
NXP NFC Controller with Embedded Secure Element, PN65O

Input device: Integrated 2 MP webcam (select models)

Expansion Slots: 1 mini PCIe; 1 MXM; 1 mSATA

Ports and Connectors: 6 USB 3.0; 2 PS/2; 1 microphone in; 1 audio headphone jack; 1 serial; 1 audio line out; 1 power connector; 1 RJ-45; 1 DisplayPort
Security: USB port disable; Lockable Access Panel; Lockable I/O security cover; Security Screw; HP Keyed Cable Lock (optional); Common Criteria Certified, Infineon TPM SLB9656TT1.2- 4.32 FW; Intrusion
Detector; Wall/Arm/Cart Mountable via VESA bracket; Support for Nobel Locking Plate (3rd party option); Support for 3M Privacy Screen (3rd party option), for non-touch models

Software: Computrace (status tracing); Device Access Manager; Drive Encryption; File Sanitizer (Activated via Wizard); Disk Sanitizer (external version); Microsoft Security Essentials (Windows 7); Microsoft Defender (Windows 8); Security Manager; Secure Erase (Windows 8); Cyberlink Media Suite; Cyberlink PhotoDirector; Cyberlink Power Director; Cyberlink Power DVD, BD; Cyberlink Power2Go (Secure
Burn); Cyberlink YouCam BE; Cyberlink YouCam Webcam Sharing Manager; HP ePrint Driver; HP PageLift; HP Support Assistant (Windows 7); HP Recovery Disk Creator (Windows 8); HP Recovery
Manager (Windows 8 Non-Touch model only); HP QuickStart (Windows 8); Adobe Flash Player (Windows 7); Bing Search for Internet Explorer 10 (Windows 7); Evernote; PDF Complete; Skype; Buy Office

Dimensions: 56 x 5.03 x 38.9 cm (without stand)

Weight: Starting at 7.89 kg (without Touch Panel); Starting at 8.74 kg (with Touch Panel)
Exact weight depends on configuration
Energy Efficiency Compliance
ENERGY STAR® qualified configurations available

Power: 200W, up to 93% efficient, active PFC
Expansion Solutions: 1 mini PCIe; 1 MXM; 1 mSATA One 13,3 cm (5.25") One 6,35 cm (2.5’’)
