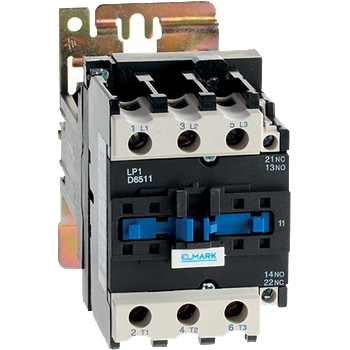

ELMARK КОНТАКТОР lp1- f115 24v 1НО (23118)

Technical characteristics:
- Rated current: 9-225А
- Rated operating voltage of the controlling coil: 12V DC to 220V DC
- Rated operating voltage of the power circuit: up to 690V АС
- Insulation voltage: 690V
- Surge voltage wear resistance: >8000V
- Electrical wear resistance (number of cycles): ≥10000000
- Mechanical wear resistance (number of cycles): ≥10000000
- Number of cycles per hour: 1200pcs up to 32А; 600pcs for 40-95А
- Ambient temperature: -10° to 65ºС
- Maximum altitude: up to 2000m

Advantages:
- Material: resistant to UV rays, self-extinguishing
- High reliability of the current parameters
- Suitable for using in highly contaminated operating environment
- Secure separation of the power contacts
- Easy mounting
- Long life
- Suitable for frequently switching ON/OFF consumers

Functions:
- Switching ON/OFF of alternating current consumers in direct current controlling schemes
- Implementation of consumer control management

Applications:
- Industry
- Transport
- Telecommunications

Mounting: On a DIN rail or using bolts to flat surface in a vertical position with maximum gradient of ±5°

Standards: EN60947-1; EN60947-4-1; LVD; EMC
