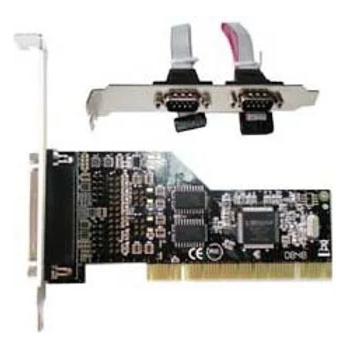

Estillo Контролер Estillo PCI към Parallel & 2x RS232

Features:

32 bit PCI Bus, PCI Specification 2.1
Serial EEPROM interface
Single 5V Operation
Low Power
PCI compatible Dual UART
16 byte transmit-receive FIFO (UART)
Selectable receive trigger levels
Programmable baud rate generator
Modem control signals
5, 6, 7, 8 Bit characters selection
Even, Odd, No parity, or Force parity generations
Status report capability
Compatible with 16C550
Fast data rates up to 1.5 Mbytes/s (parallel port)
Fast data rates up to 1 Mbytes/s (serial ports)
On chip oscillator
16 Byte FIFO (parallel)
Software programmable mode selects
128-pin QFP package
Plug and Play for Windows 95/98 , IRQ Sharing, No Jumper setting
Set the I/O addresses automatically
Supports MS-DOS, Windows 95/98/98SE/ME/2000/XP/Vista/Win7, Windows NT 4. x
SERIAL / RS-232 FEATURES

Uses UART FIFO 16C550
COM B connector uses DB 9 pin(default)
COM A connector uses DB 9 pin
Support Re-map to ISA address 3F8,2F8,3E8,2E8 (9835 Only)
PARALLEL PORT FEATURES

Support Re-map to ISA address 378,278 (9835 Only)
The Parallel Port can support the extension of the following products:
Tape driver, CD-ROM driver, Printer, Parallel Port,
SCSI Adapter, External LAN Adapter, and Scanner.
Supports IEEE 1284 standard
DB-25 pin female centronic connector
