FIBARO FGWREU-111

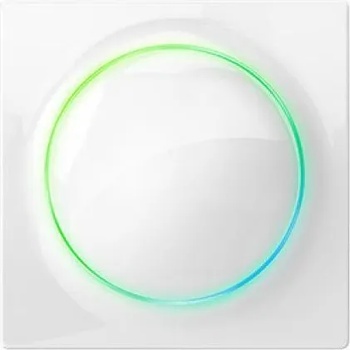

FIBARO Wall Roller Shutter is a smart wall switch designed to control roller blinds, awnings, venetian blinds and other single phase, AC powered devices via Z-Wave network.


It measures active power and energy consumed by the controlled load.

You can install it with FIBARO cover plate or other compatible: GIRA System 55 (Standard 55, E2, Event, Event Clear), Legrand Céliane or Schneider Odace (required parts and limitations were described in the full manual).

• Dimensions: Height 86 mm, Width 86 mm, Depth 51 mm
• Power Supply: 110-230V~50/60 Hz
• Recommended external overcurrent protection: 10A type B circuit breaker (EU), 13A type B circuit breaker (Sweden)

• Active element: micro-gap relay μ
• Required limit switches: electronic or mechanical
• Recommended wires: cross-section area between 1.5-4.0mm2

• For installation in boxes: Ø = 60mm, depth ≥ 40mm
• Operating temperature: 0-35 °C
• Ambient humidity: 10–95% RH without condensation
• Rated load current: 4A – for motors with compensated power factor (inductive), 13A – for resistive loads

• Compatible load types: single-phase AC motors, resistive
• Radio protocol: Z-Wave
• Transmit power: EIRP max 6dBm
• Radio frequency: 868.4 or 869.85 MHz EU
• Range: up to 40m indoors(depending on terrain and building structure)
