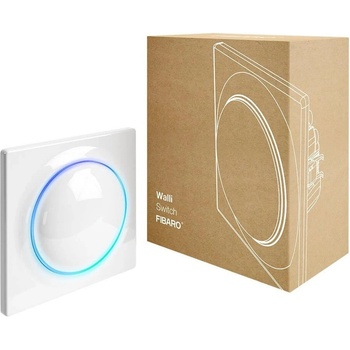

Fibaro Смарт превключвател Fibaro Walli Switch FGWDSEU-221, за стена, включване/изключване на осветление, Z-Wave радио протокол, бял (FGWDSEU-221)

FIBARO Wall Double Switch is a smart wall switch designed to control one or two light sources via Z-Wave network.

It measures active power and energy consumed by the controlled load.

You can install it with FIBARO cover plate or other compatible: GIRA System 55 (Standard 55, E2, Event, Event Clear), Legrand Céliane or Schneider Odace (required parts and limitations were described in the full manual).

• Dimensions: Height 86 mm, Width 86 mm, Depth 51 mm
• Power Supply: 110-230V~50/60 Hz
• Recommended external overcurrent protection: 10A type B circuit breaker (EU), 13A type B circuit breaker (Sweden)

• Active element: micro-gap relay μ
• Recommended wires: cross-section area between 1.5-4.0mm2

• For installation in boxes: Ø = 60mm, depth ≥ 40mm
• Operating temperature: 0-35 °C
• Ambient humidity: 10–90% RH without condensation
• Rated load current: 13A per one channel, 16A total

• Number of controlled loads: 1/2 (default 2)
• Compatible load types:
  • incandescent
  • tub e lamps
  • LED
  • electronic transformers
  • ferromagnetic transformers

• Radio protocol: Z-Wave
• Transmit power: EIRP max 6dBm
• Radio frequency: 868.4 or 869.85 MHz EU
• Range: up to 40m indoors(depending on terrain and building structure)
