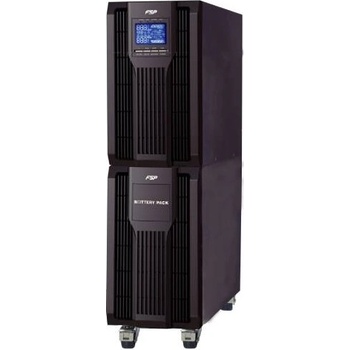

FSP Champ Tower 10K (PPF90A0802)

Product SpecificationsParameter NameParameter OptionProduct TagVID-03Product ID70294UID62852ManufacturerFORTRONPart NumberCHAMP 10K TOWER ONLINE / PPF90A0802ModelChamp TW 10KCapacity10000 VA / 9000WInputInput Voltage Range 110-300 VAC (50% load), 176-300VAC (100% load);Input Frequency 46Hz ~ 54Hz or 56Hz ~ 64Hz;Power Factor ≥ 0.99 @ Nominal Voltage (100% load)OutputOutput Voltage 208/220/230/240 VAC;AC Voltage Regulation ±1%;Output Frequency Range 46Hz ~ 54Hz or 56Hz ~ 64Hz;Current Crest Ratio 3:1;Harmonic Distortion ≤ 3 % THD (Linear Load), ≤ 5 % THD (Non-linear Load);Output Transfer Time (Typical) Zero (AC to DC), Zero (Inverter to Bypass);Output Waveform (Batt. Mode) Pure Sinewave;AlarmsBattery Mode Sounding every 4 seconds;Low Battery Sounding every second;Overload Sounding twice per second;Fault Continuously soundingBatteryBattery Type 9Ah / 10Ah;Numbers 16 – 20pcs(Adjustable);Charging Current (max) 1A, 2A, 4A, 6A (Adjustable, 6A only for 16pcs baterries);Charging Voltage 218.4V ±1%(based on 16pcs batteries)EnvironmentHumidity 0-95 % RH @ 0- 40°C (non-condensing);Noise Level Less than 58dB @ 1 MeterStandartsSafety / EMC IEC 62040-1(Safety) / IEC 62040-2 (EMC) / CEDimensions442 x 190 x 318mm (DxWxH)OtherManagement Supports Windows® 98/XP/2000/Vista/7/8/10, Windows® Server 2000/ 2003/ 2008/ 2012/ 2016, Linux, and MAC

22-04-2025 11:58:13 PM

Parnum: 10000 VA / 9000W
