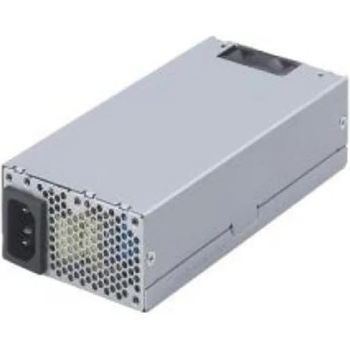

FSP FFSP180-50FEB 180W

FSP FFSP180-50FEB

FSP180-50FEB is a standard Flex form factor switching power supply. The power supply comes to offer the total power capacity up to 180 Watts, which makes it to be ideally used in an industrial environment. In addition, the power supply is ideally the best choice for IPC controller, networking, communication or any other automation applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.



• Certified CB 62368-1 & CB 60950-1


• Meet 80 Plus Bronze


• Design for 5,000 Meters above sea level


• High Reliability


• Low Ripple & Noise


• Over Current Protection


• Over Temperature Protection


• Over Voltage Protection



Specifications:



Working temperature:
0°C to 50°C



Storage temperature:
-20°C to + 80°C

Efficiency:
80 Plus Bronze
Working humidity:
85%
RH non-condensing



Storage humidity:
95%
RH non-condensing

Hold-up time at 100%
115V / 60Hz: ≥ 16ms




Loading:
230V / 50Hz: ≥ 16ms
MTBF:
100,000 hours of continuous operation at 25°C, Max, -output load

Operating altitude:
5,000 meters above sea level
Applications:
Networking , Storage System , IPC Controller

Outputs

+3.3V

+5V
+12V
-12V
+5Vsb

Max.
8.0A
12.0A
12.0A
0.3A
2.0A

Min.
0.0A
0.0A
0.05A
0.0A
0.0A

Regulation
±5%
±5%
±5%
±10%
±5%

Ripple/Noise
50 mV
50 mV
120 mV
120 mV
50 mV
