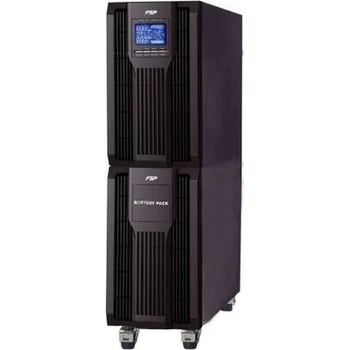

FSP Fortron Champ Tower 10kVA/9kW ON-LI Long Run

Допълнителни снимки на продукта:

Снимка 1
FORTRON CHAMP 10K TOWER ONLINE

Model: Champ TW 10K
Capacity: 10000 VA / 9000W
Input: Input Voltage Range 110-300 VAC (50% load), 176-300VAC (100% load);Input Frequency 46Hz ~ 54Hz or 56Hz ~ 64Hz;Power Factor ? 0.99 @ Nominal Voltage (100% load)
Output: Output Voltage 208/220/230/240 VAC;AC Voltage Regulation ±1%;Output Frequency Range 46Hz ~ 54Hz or 56Hz ~ 64Hz;Current Crest Ratio 3:1;Harmonic Distortion ? 3 % THD (Linear Load), ? 5 % THD (Non-linear Load);Output Transfer Time (Typical) Zero (AC to DC), Zero (Inverter to Bypass);Output Waveform (Batt. Mode) Pure Sinewave;
Alarms: Battery Mode Sounding every 4 seconds;Low Battery Sounding every second;Overload Sounding twice per second;Fault Continuously sounding
Battery: Battery Type 9Ah / 10Ah;Numbers 16 – 20pcs(Adjustable);Charging Current (max) 1A, 2A, 4A, 6A (Adjustable, 6A only for 16pcs baterries);Charging Voltage 218.4V ±1%(based on 16pcs batteries)
Environment: Humidity 0-95 % RH @ 0- 40°C (non-condensing);Noise Level Less than 58dB @ 1 Meter
Standarts: Safety / EMC IEC 62040-1(Safety) / IEC 62040-2 (EMC) / CE
Dimensions: 442 x 190 x 318mm (DxWxH)
Other: Management Supports Windows® 98/XP/2000/Vista/7/8/10, Windows® Server 2000/ 2003/ 2008/ 2012/ 2016, Linux, and MAC



.
UPS
On-li ne
