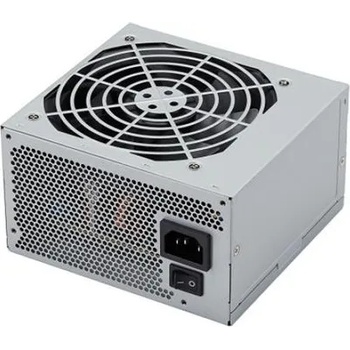

FSP FSP500-50AAC 500W 80 PLUS Bronze (9PA500C708)

FSP AAC Series features with eco-friendly design, which allows AAC series to reach up to 85% efficiency. AAC series also equipped with complete protection to prevent your system from damage. AAC series does the job efficiently and reliably, making it a stable power supply unit built to satisfy the demands of all kind of system build.

Features:

Intel PSDG ATX 12V V2.52 version
80 PLUS BRONZE Certification
Worldwide Input Voltage 100Vac-240Vac
Single 12V Rails Fulfill all System Demand
Active PFC Within 0.99 Power Factor Correction
Forward & D2D Circiuit Design Offering High Performance and Efficiency
12cm Fan Provide Ultra Silent Working Environment
National Safety Regulations Certification: CB 62368, CB 60950, CE, TUV, CUL

Specifications

Input Specifications
Input voltage: 90-264Vac
Input frequency: 47-63Hz
Input current: 115Vac @ 7A, 230Vac @ 3A

Dimension:
(L x W x H)
140 x 150 x 86 (mm)
5.51 x 5.91 x 3.39 (inch) Environment

Efficiency: 80 Plus Bronze

Working temperature: 0°C to 40°C

Hold-up time: 115V / 60Hz: ≥ 16ms
230V / 50Hz: ≥ 16ms

Storage temperature: -20°C to + 80°C

Operating altitude 2,000 meters above sea level

MTBF: 100,000 hours of continuous operation at 25°C, Max. output load

Working humidity: 90% RH non-condensing

Storage humidity: 90% RH non-condensing
