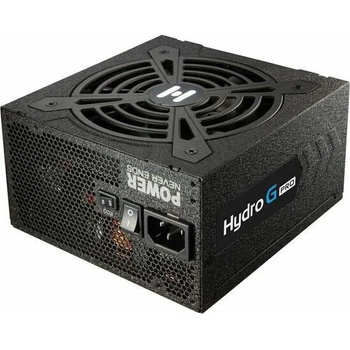

FSP Hydro G Pro 650W 80 PLUS Gold (PPA6505001)

FSP HYDRO G PRO

New HYDRO G Pro series upgrades from original HYDRO G, took the best features of HYDRO G series and made them even better. With smaller size, improves performance and more powerful output give you ultra-performance.



Keep in Compliance IEC/EN 62368

FSP Group features the latest in green power technology, and provide a full kinds of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of power supplies to the new IEC/EN 62368 standard for your gaming rigs.



ECO Switch, Quieter and Longer Lasting Fan

You can adjust the button to suit your needs, when Eco Button is switched on, making it easier to run on lower consumption and whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.







Specifications:

Model
HG2-650

Rated Output Power
650W

Form Factor
ATX

80 PLUS Certification
Gold

Input Voltage
100-240Vac

Input Current
8-4A

Input Frequency
50-60Hz

PFC
Active PFC

Efficiency
90%

Fan Type
FDB Fan, 120mm

Dimensions(L x W x H)
150 x 150 x 86mm

Operation Temp.
0-50℃

Protection
OCP, OVP, OPP, SCP, OTP

AC Input
100-240Vac~  8-4A  50-60Hz

DC Output
+3.3V
+5V
+12V
-12V
+5Vsb

Max Output Current
20A
20A
54.17A
0.3A
2.5A

Max Combined Power
100W
650W
3.6W
12.5W

Total Power
650W


ATX 20+4
4+4 PIN
PCI-E 6+2
SATA
Molex

(PERIPHERAL)
Floppy

Connectors
1
2
4
12
3
1
