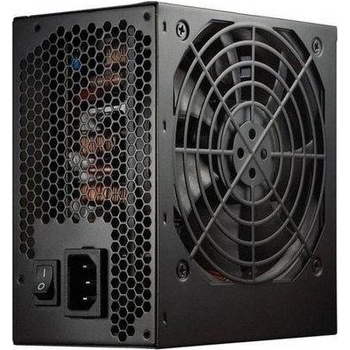

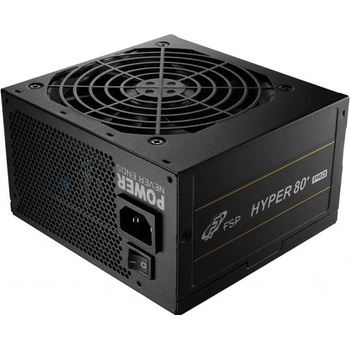

FSP HYPER 80+ PRO 650W 80 PLUS Bronze (9PA6507503)

HYPER 80+ PRO 650W

The new HYPER 80+ Pro PSUs comply fully ATX 12 v2.52 standard and latest safety 62368 regulation as well, and features with all black and high-grade ribbon cables, will give your PC a polished look. The HYPER 80+ Pro series is characterized by a powerful single +12V rail design that continually delivers maximum performance for the most demanding components, while FSP’s custom DC-DC design provides safety and power efficiency. With an 230V 80 Plus rating, both models deliver over 85% high efficiency and low noise levels thanks to its thermal control fan design, where a large 120mm fan takes care of cooling duties when required, making it excellent for situations that are sensitive to size and noise.

80 Plus® 230V EU White Certification

HYPER 80+ PRO series, 80 PLUS® 230V EU White certified, saves energy through its high efficiency up to 82% and excesses the standard through its high efficiency up to 85%.

DC-to-DC Module Design

With a 12V SR circuit and the DC to DC structure, HYPER 80+ PRO series ensure you outstanding conversion efficiency and provides stable output voltage.

All Black Round Cables

The all black coating round cables give your system a superior look rather so many entry-level power supplies



AC Input
200-240Vac~  5A  50-60Hz

DC Output
+3.3V
+5V
+12V
-12V
+5Vsb

Max Output Current
20A
20A
54.1A
0.3A
2.5A

Max Combined Power
100W
649.2W
3.6W
12.5W

Total Power
650W

Specifications:

Model
H3-650

Rated Output Power
650W

Form Factor
ATX

Input Voltage
200-240V

Input Current
5A

Input Frequency
50-60Hz

PFC
Active PFC

Efficiency
85%

Fan Type
Sleeve Fan, 120mm

Dimensions(L x W x H)
150 x 140 x 86mm

Weight
1.461 kgs

Protection
OCP, OVP, OPP, SCP
