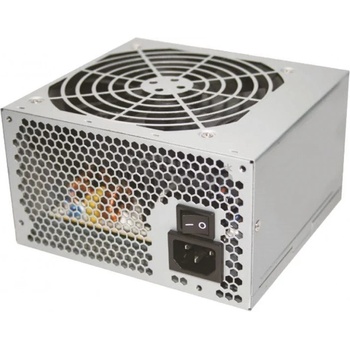

FSP SP500-AD 450W (9PA450AF00)

FSP SP500-AD

FSP SP-AD Series features with eco-friendly design, which allows SP-AD series to reach up to 85% efficiency.   SP-AD  series  also  equipped  with  complete  protection  to  prevent  your  system  from damage. SP-AD series does the job efficiently and reliably, making it a stable power supply unit built to satisfy the demands of all kind of system build.



Certified CB 62368-1

80 PLUS 230V EU Standard Efficiency

Intel Design Guide ATX 12V V3.0

Low Ripple & Noise

Over Current Protection

Over Temperature Protection

Over Voltage Protection



Specifications:

Efficiency:
80 Plus 230V EU Standard

Efficiency
Working temperature:
0°C to 40°C

Hold-up time:
230V / 50Hz: ≥ 16ms
Storage temperature:
-40°C to + 70°C

Operating altitude
2,000 meters above sea level
Working humidity:
~95% RH non-condensing

MTBF:
100,000 hours of continuous operation at 25°C, Max. output load
Storage humidity:
~95% RH non-condensing

Outputs

+5V
+12V
-12V
+5Vsb

Max
15A
15A
37.5A
0.3A
2.5A

Min.
0A
0A
0A
0A
0A

Regulation
±5%
±5%
±5%
±10%
±5%

Ripple/Noise
50 mV
50 mV
120 mV
120 mV
50 mV
