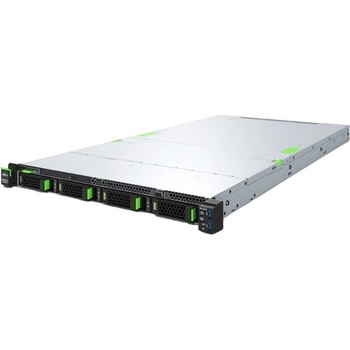

Fujitsu PRIMERGY RX2530 M7 R2537SC320IN

FUJITSU PRIMERGY RX2530 M7 Intel Xeon Silver 4410T 32GB 8xSFF iRMC eLCM 2x900W TPM NoOS





Manufacturer
FUJITSU TECHNOLOGY SOLUTIONS

Manufacturer Part No
VFY:R2537SC320IN



Marketing Description

The Fujitsu PRIMERGY RX2530 M7 server in a dense 1U chassis is based on a dual socket x86 platform providing an ideal combination of performance and scalability for most data centers. The PRIMERGY RX2530 M7 is ideal for AI workloads, HPC infrastructures, virtualization, databases as well as scale-out scenarios.

Product Features

Optimized performance and densityThe Xeon Silver processor offers 10 cores and PCI-Express 5.0, enabling a significantly higher performance and efficiency.
Power your applications32 memory slots in total supporting 8 TB memory with DDR5 modules (at 4,800 MT/s) for improved workload performance.
Comprehensive protectionPRIMERGY servers are equipped with beneficial features to protect against, detect and recover from security breaches.

General

Type
Server

Product Form Factor
Rack-mountable - 1U

Built-in Devices
8 x fans

Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip

Server Scalability
2-way

Hot-Swap Bays Qty
8

Localisation
Region: Europe

Processor / Chipset

CPU
Intel Xeon Silver 4410T

Clock Speed
2.7 GHz

Max Turbo Speed
4 GHz

Number of Cores
10-core

CPU Qty
1

Max CPU Qty
2

CPU Upgradability
Upgradable

Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology 2

Chipset Type
Intel C741

Cache Memory

Installed Size
26.25 MB

Cache Per Processor
26.25 MB

RAM

Installed Size
32 GB / 8 TB (max)

Technology
DDR5 SDRAM - ECC

Effective Memory Speed
4800 MHz

Rated Memory Speed
4800 MHz

Slots
32 (Total) / 31 (empty)

Features
Registered, dual channel memory architecture, Memory Mirroring, Independent Memory Mode, memory scrubbing, Single Device Data Correction (SDDC), Adaptive Double-Device Data Correction (ADDDC)

Configuration Features
1 x 32 GB

Hard Drive

Type
No HDD

Storage Controller

Type
1 x SATA

Controller Interface Type
SATA 6Gb/s

Channel Qty
11

Optical Storage

Type
No optical drive

Monitor

Monitor Type
None.

Graphics Controller

Video Interfaces
VGA

Networking

Remote Management Protocol
IPMI 2.0

Remote Management Controller
Integrated Remote Management Controller (iRMC S5)

Features
PXE support

Compliant Standards
OCP 3.0

Expansion / Connectivity

Bays
8 (total) / 8 (free) x hot-swap 2.5"1 (total) / 1 (free) x external 5.25" (9.5mm height)

Slots
1 PCIe 4.0 x16 - low-profile3 PCIe 5.0 x16 - low-profile

Interfaces
5 x USB 3.0 (2 front, 2 rear, 1 internal)1 x VGA1 x management (Gigabit Ethernet) - RJ-45

Miscellaneous

Included Accessories
Rack mounting kit, iRMC Advanced Pack

Cables Included
Power cable (2 pcs. )

Compliant Standards
FCC Class A certified, BSMI, GS, CB, CCC, ICES-003 Class A, RoHS, WEEE, KC, VCCI Class A, JIS C 61000-3-2, EAC, NMB-3 Class A, RCM, ErP Lot 9, NRTLc/us

Power

Device Type
Power supply - hot-plug

Power Redundancy
Yes

Power Redundancy Scheme
1+1

Installed Qty
2

Max Supported Qty
2

Power Provided
900 Watt

Power Consumption Operational
165.4 Watt

80 PLUS Certification
80 PLUS Titanium

Efficiency
96%

Operating System / Software

OS Provided
No operating system

Software
iRMC S6 eLCM activation licence

Manufacturer Warranty

Service & Support
Limited warranty - 3 years - on-site

Dimensions & Weight

Dimensions & Weight Details
48.22 cm - 80.745 cm - 4.27 cm - with front bezel

Width
43.5 cm

Depth
80.745 cm

Height
4.27 cm

Weight
18 kg

Environmental Parameters

Max Operating Temperature
35 °C

Humidity Range Operating
8 - 85% (non-condensing)

Sound Emission
44 dBA

Technical data provided by third party. We assume no liability for errors within these data.
