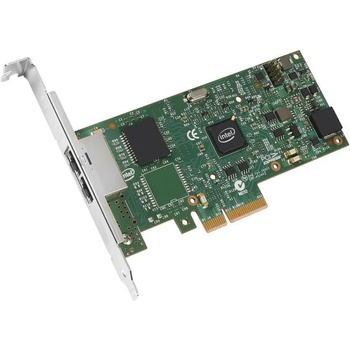

Fujitsu S26361-F4610-L502

Option PLAN CP 2x1Gbit Cu Intel I350-T2





Manufacturer
FUJITSU TECHNOLOGY SOLUTIONS

Manufacturer Part No
S26361-F4610-L502



Marketing Description

A networked IT infrastructure that functions and controlling critical business processes in a transported across the network relies on fast and reliable data processing by the network cards. The cards offers at least one Ethernet interface which is designed for the respective network types and network architectures. The bus interface links the network card with the server.

Product Features

Based on the Intel 1 GbE LAN Powerville I350 -AM2 chipIndustry-leading, energy-efficient is designed for 1 Gigabit performance and multi-core processors.
Power management such as Ethernet Efficient Ethernet and DMA Coalescing (DMAC) supportThis contributes to increased efficiency and reduces power consumption.
10/100/1000 MbpsAutomatically compatible with Ethernet, fast Ethernet, and Gigabit Ethernet networks.
Virtualization support via VMDq and SR-IOVMulti-port cards provide the platform with the port density required for virtualized environments.

General

Device Type
Network adapter

Form Factor
Plug-in card - low profile

Interface (Bus) Type
PCI Express 2.1 x4

PCI Specification Revision
PCIe 2.1

Networking

Ports
Gigabit Ethernet x 2

Connectivity Technology
Wired

Cabling Type
Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T

Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet

Data Transfer Rate
1 Gbps

Network / Transport Protocol
TCP/IP, UDP/IP, iSCSI

Status Indicators
Port transmission speed, link/activity

Features
Flow control, auto-negotiation, VLAN support, WOL, IPv6 support, Jumbo Frames support, VMDq, IPv4 support, RSS, SR-IOV, LACP, TSO, PXE 2.0 support, MSI-X, PTP

Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az

Processor / Memory

Processor
1 x Intel I350-AM2

Expansion / Connectivity

Interfaces
2 x 1000Base-T - RJ-45

Miscellaneous

Included Accessories
Low-profile bracket, full-height bracket

Power

Power Consumption Operational
4.4 Watt

Environmental Parameters

Min Operating Temperature
0 °C

Max Operating Temperature
55 °C

Compatibility Information

Designed For
Fujitsu PRIMERGY CX120 S1, CX122 S1, CX250 S1, CX250 S2, CX2550 M1, CX2550 M1 Liquid Cooling, CX2550 M4, CX2550 M4 liquid cooling, CX2550 M5, CX2560 M4 air cooling, CX2560 M4 liquid cooling, CX2560 M5, CX2570 M4 PCI air cooling, CX2570 M4 SXM2 liquid cooling, CX270 S1, CX270 S2, CX272 S1, RX100 S6, RX100 S7, RX100 S7p, RX100 S8, RX1330 M1, RX1330 M2, RX1330 M3, RX1330 M4, RX200 S6, RX200 S7, RX200 S8, RX2510 M2, RX2520 M1, RX2520 M5, RX2530 M1, RX2530 M1-L, RX2530 M2, RX2530 M4, RX2530 M4 Liquid Cooling, RX2530 M5, RX2530 M5 Liquid Cooling, RX2540 M1, RX2540 M1-L, RX2540 M2, RX2540 M2 Storage Spaces, RX2540 M4, RX2540 M5, RX2560 M1, RX300 S6, RX300 S7, RX300 S8, RX350 S7, RX350 S8, RX4770 M1, RX4770 M2, RX4770 M3, RX500 S7, RX600 S5, RX600 S6, RX900 S1, RX900 S2, SX150 S8 Universal Storage Server, SX350 S8 Universal Storage Server, TX100 S2, TX100 S3, TX100 S3p, TX120 S2, TX120 S3, TX120 S3p, TX1310 M1, TX1310 M3, TX1320 M1, TX1320 M2, TX1320 M3, TX1320 M4, TX1330 M1, TX1330 M2, TX1330 M3, TX1330 M4, TX140 S1, TX140 S1p, TX140 S2, TX150 S7, TX150 S8, TX150 S8r, TX200 S6, TX200 S7, TX2540 M1, TX2550 M4, TX2550 M5, TX2560 M1, TX2560 M2, TX300 S6, TX300 S7, TX300 S8
