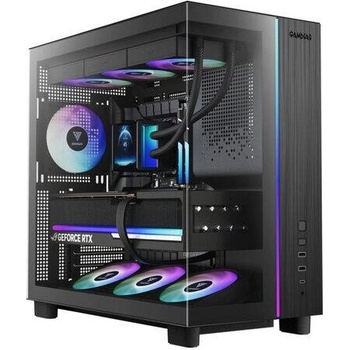

Gamdias ATLAS M4
IMMERSIVE VISUALS, DYNAMIC AIRFLOW
The ATLAS M4 delivers a fully immersive showcase with seamless tempered glass panels from bottom to top. Its front-mounted PSU design not only opens a complete panoramic view of your build but also enables chimney-style ventilation for optimal thermal performance. With four built-in NOTUS M1 ARGB fans and an adjustable bottom cooling system, the ATLAS M4 combines striking visuals with powerful cooling efficiency.
FULL IMMERSIVE VIEW
Showcase your build from bottom to top with seamless tempered glass panels on the front and side. With the PSU positioned at the front, the ATLAS M4 delivers an unobstructed, panoramic view of your components, creating a truly immersive visual experience.
CHIMNEY-STYLE VENTILATION
The ATLAS M4 maximizes cooling efficiency with a natural chimney effect, drawing fresh air through the perforated bottom and exhausting heat through the top and rear. This design ensures consistent cooling performance with powerful, unobstructed airflow throughout the case.
4 ARGB PWM FANS WITH BUILT-IN FAN HUB
Featuring four built-in silent NOTUS M1 ARGB fans, the case provides exceptional lighting and finely tuned airflow with minimal noise. The included 8-port PWM ARGB fan hub allows for easy management and synchronization, ensuring a cohesive lighting setup that perfectly complements the high-performance, quiet operation of the fans.
EASY ACCESS FRONT-MOUNTED PSU DESIGN
The PSU is strategically positioned at the front side of the case, with connector ports oriented downward for easier cable management. A PSU shroud enhances the clean aesthetic, and an extension cable is included to facilitate rear power connection.
FLAWLESS VIEW
The ATLAS M4 supports connector-hidden motherboards (BTF), allowing cables to plug in from the back for a cleaner front appearance and enhanced PC setups. A rotatable cable cover beneath the PSU chamber helps conceal and organize wires, ensuring a seamless and organized build.
GEN 2 TYPE-C INTERFACE
The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, two USB 3.0 ports, fan LED controls, and additional audio connectivity.
SIMPLE CLASP MECHANISM
The ATLAS M4 showcases your build with tempered glass on the front and side, while a simple clasp mechanism on all removable panels ensures stunning visuals with easy modding and upgrades.
COOLING COMPATIBILITY
The ATLAS M4 can accommodate up to 7 fans and offers flexible options for the installation of radiators at the top and rear.
INTERIOR ACCOMMODATION
The case offers the option to house up to ATX motherboards, air coolers with 175mm RAM clearance, and VGA cards with lengths up to 425mm.
STORAGE COMPATIBILITY
The ATLAS M4 supports installation of up to 2 x 2.5" or 1 x 2.5"+1 x 3.5" and can accommodate PSU lengths up to 160mm.
DUST RESISTANT
Equipped with dust filters on the top and side, the case effectively protects against dust while maintaining ventilation.
Specifications
Case Type: MID Tower
MB Support: ATX、Micro-ATX、Mini-ITX
Synchro nization: 5V 3-Pin Addressable Header
Expansion Slots: 7
Material: SPCC & ABS & Tempered glass
Window: Front, Left
Drive Bays: 1 x 3.5 + 1 x 2.5 or 2 x 2.5
I/O Port: Type-C x 1, USB 3.0 x2, HD Audio x1, LED Control x1
Dimension (L x W x H): 430 x 235 x 434mm
Pre-installed Control BOX: 8 Ports Hub (4 port are used)
Radiator Support
Top: 360mm / Rear: 120mm
Fan SupportTop: 3 x 120mm
Rear: 1 x 120mm / 1 x 140mm
Bottom: 3 x 120mm
Pre-installed Fans
Rear: 1 x 120mm PWM ARGB Fan
Bottom: 3 x 120mm PWM ARGB Fans
Clearance: CPU cooler height limitation: 175mm
VGA length limitation: 425mm
PSU length limitation: 160mm
