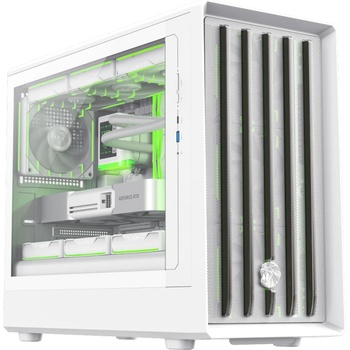

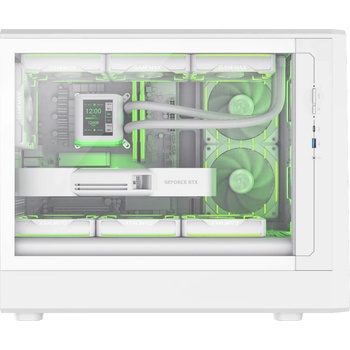

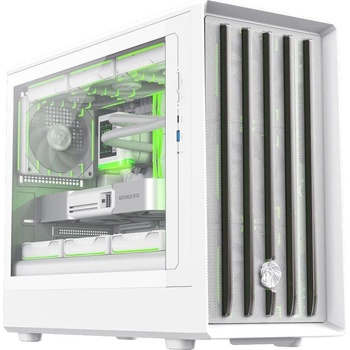

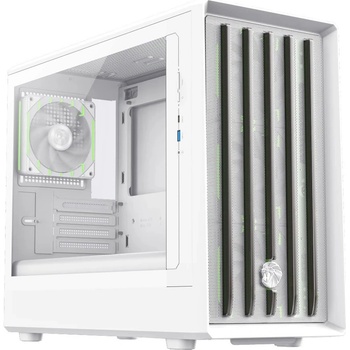

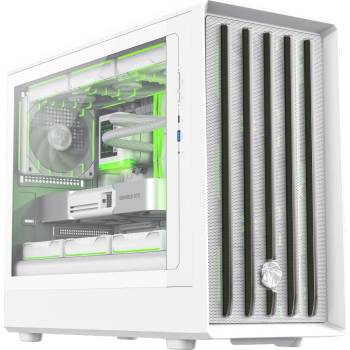

GAMEMAX Claw 360 white (9101-1100R0002)

Gamemax Claw 360



Bold new Gamemax identity

An aggressive claw-inspired front panel paired with exclusive GAMEMAX sculpted ventilation mesh delivers standout aesthetics with airflow-optimized function.

Superior thermal performance

High-airflow mesh front and vertical airflow layout ensure efficient heat dissipation during demanding workloads or gaming sessions.

Integrated GPU support bracket

Includes a height-adjustable GPU holder to minimize sagging and protect your graphics card long term.

Anti-insect design

Extended desiqn at the bottom of the panel to seal the hardware rack holes.

Next-gen GPU ready

Stay up to date. Ready for the latest games and highest performing Next-Gen GPUs.



Reinforced and convenient

Tool-free Glass Side Panel

Top Magnetic Dust Filter

PSU Dust Filter



Compatibility and size



Size



I/O Panel



Compatibili ty

M/B: M-ATX / ITX

CPU Cooler Height: 175mm

VGA Length: 420mm



Storage

3.5"HDD x2 + 2.5"SSD x1 or
3.5"HDD x1 + 2.5"SSD x2



Cooling fans

Front: 3x120mm (Tornado-T12 include)

Rear: 1x120mm (Tornado-T12 include)



Liquid Cooler

Top:120mm, 140mm, 240mm, 280mm, 360mm

Rear:120mm



Specifications



Form Factor: M-ATXChassis: SPCC :0.5mmPSU Form Factor Bottom/ATXM/B Form Factor: M-ATX、ITXFront Panel: Plastic + MeshTop Panel: MetalSide Panel: Left: Tempered Glass (Tool-free)Right: Metal coverExternal Drive Bay(s): 5.25(ODD): *03.5: *0Internal Drive Bay(s): 3.5" (HDD): *Up to 22.5" (SSD): *Up to 22*3.5HDD+1*2.5SSD or 1*3.5HDD+2*2.5SSDI/O: Buttons: *2 (POEWR, RESET or LED MODL)USB 2.0 Port(s): *0USB 3.0 Port(s): *1Type C Port(s): *1(TYPE-C GEN2)Audio Support: *1(Combo AUDIO)Card Reader (Support): *0P-Lock *0RGB Controller V5.0 ARGB PWM HUBController Max Fans: *6RGB Controller max. LED strips *6Remote (IR or RF) *RFCooling Fan Support: Front: 3x120mm (Tornado-T12 ARGB)Top: 3x120mm , 2x140mm (Fan optional)Rear: 1x120mm (Tornado-T12 ARGB)Bottom: *0M/B Cover *2x120mm (Fan optional)PSU Cover *3x120mm (Fan optional)

Water Cooling Support

(Radiator Size):

Front: *0Top: 120mm, 140mm, 240mm, 280mm, 360mmRear: 120mmM/B Cover *0Dust Cover: Dust mesh on the bottom and topSlots: *4Carton & Logo: GAMEMAXDimensions: Chassis: (L)458*(W)220*(H)395mmFull Case (Inc Fascia): (L)483*(W)220*(H)408mmCarton: (L)452*(W)277*(H)551mmNet Weight(kg): 8.4Gross Weight(kg): 9.4
