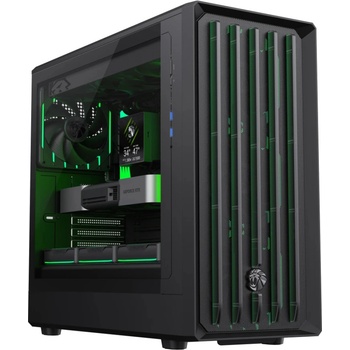

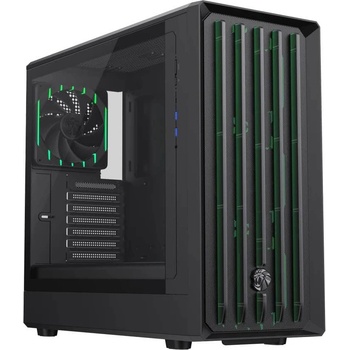

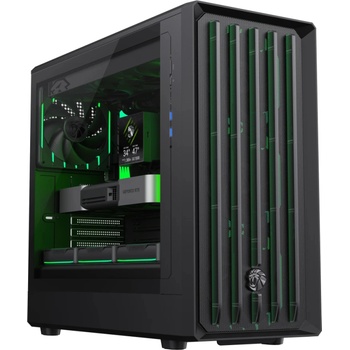

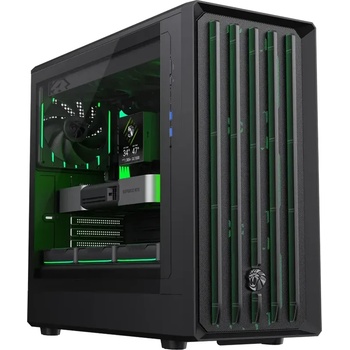

GAMEMAX Claw 460 black (9101-1200R0005)



Bold new Gamemax identity

An aggressive claw-inspired front panel paired with exclusive GAMEMAX sculpted ventilation mesh delivers standout aesthetics with airflow-optimized function.

Superior thermal performance

High-airflow mesh front and vertical airflow layout ensure efficient heat dissipation during demanding workloads or gaming sessions.

Integrated GPU support bracket

Includes a height-adjustable GPU holder to minimize sagging and protect your graphics card long term.

Anti-insect design

Extended desiqn at the bottom of the panel to seal the hardware rack holes.

Next-gen GPU ready

Stay up to date. Ready for the latest games and highest performing Next-Gen GPUs.



Reinforced and convenient



Tool-free Glass Side Panel

Top Magnetic Dust Filter

PSU Dust Filter



Compatibility and size



I/O Panel



Compatibili ty

M/B: ATX

CPU Cooler Height: 175mm

VGA Length: 420mm



Storage

3.5"HDD x2 + 2.5"SSD x1 or
3.5"HDD x1 + 2.5"SSD x2



Cooling fans

Front:
3x140mm (Tornado-T14)

Rear:
1x120mm (Tornado-T12)



Liq uid Cooler

Top:120mm, 140mm, 240mm, 280mm, 360mm

Rear:120mm



Specifications



Form Factor: Mid-Tower  Chassis: SPCC :0.5mm  PSU Form Factor Bottom/ATX  M/B Form Factor: ATX、M-ATX、ITX  Front Panel: Plastic + Mesh  Top Panel: Metal  Side Panel: Left: Tempered Glass (Tool-free)Right: Metal coverInternal Drive Bay(s): 3.5" (HDD): *Up to 22.5" (SSD): *Up to 22*3.5HDD+1*2.5SSD or 1*3.5HDD+2*2.5SSD  I/O: Buttons: *2 (POEWR, RESET or LED MODL)USB 2.0 Port(s): *0USB 3.0 Port(s): *2Type C Port(s): *1(TYPE-C GEN2)Audio Support: *1(Combo AUDIO)Cooling Fan Support: Front: 3x140mm (Tornado-T14)Top: 3x120mm , 2x140mm (Fan optional)Rear: 1x120mm (Tornado-T12)Bottom: *0M/B Cover： *2x120mm (Fan optional)PSU Cover： *3x120mm (Fan optional)

Water Cooling Support

(Radiator Size):

Front: *0Top: 120mm, 140mm, 240mm, 280mm, 360mmRear: 120mmM/B Cover： *0Dust Cover: Dust mesh on the bottom and top  Slots: *7  Carton & Logo: GAMEMAX  Dimensions: Chassis: (L)458*(W)220*(H)446mmFull Case (Inc Fascia): (L)483*(W)220*(H)458mmCarton: (L)500*(W)277*(H)551mmNet Weight(kg): TBUGross Weight(kg): TBUVGA Support: up to 420mm (inside the front cover w/o fan)  Vertical Graphics Support No  CPU Cooler Height: up to 175mm  SPS Length: up to 240mm  Cable Management Depth: 21mm
