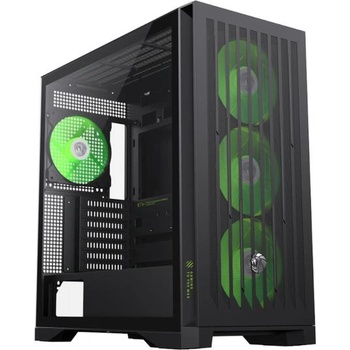

GAMEMAX Leader 2 black (9101-0900R0001)

Gamemax Leader 2



Efficient cooling airflow

Supports both air and liquid cooling with excellent performance. Features a separated power supply compartment for efficient cooling. Vertical airflow channel quickly dissipates heat, ensuring stable computer operation.

Supports BTF motherboards

Supports E-ATX/ATX/M-ATX/ITX motherboards. Supports ATX/M-ATX BTF motherboards with 32mm cable space for a clean build.

Vertical GPU support

Provides the option for vertical GPU installation to showcase your graphics card in style.



Reinforced and convenient

Innovative Tool-Free Installation

Top Removable lron Mesh

Bottom Pull-out Dust Filter



Compatibil ity

M/B: E-ATX / ATX / M-ATX / ITX
CPU Cooler Height: 185mm
VGA Length: 425mm
PSU Length: 245mm

3.5"HDD x2 + 2.5"SSD x2 or 3.5"HDD x1 + 2.5"SSD x3

Cooling fans

Top:3x120mm Front: 3x140mm Rear: 1x140mm



Liquid Cooler

Top:360mm Front: 420mm Rear: 140mm



Specifications



Form Factor: E-ATXChassis: SPCC :0.6-0.7mmPSU Form Factor Bottom/ATXM/B Form Factor: E-ATX、ATX、M-ATX、ITXATX、M-ATX Support BTFFront Panel: metal Mesh(Tool-free)Top Panel: metal Mesh(Tool-free)Side Panel: Left: Tempered Glass(Tool-free)Right: Metal cover(Tool-free)External Drive Bay(s): 5.25(ODD): *03.5: *0Internal Drive Bay(s): 3.5" (HDD): *22.5" (SSD): *32*3.5HDD+2*2.5SSD or  1*3.5HDD+3*2.5SSD  I/O: Buttons: *3 (POEWR, RESET, LED MODL)USB 2.0 Port(s): *0USB 3.0 Port(s): *2Type C Port(s): *1 (TYPE-C GEN2)Audio Support: *1 (Combo AUDIO)Card Reader (Support): *0P-Lock： *0RGB Controller： *1(V5.0 PWM ARGB HUB)Controller Max Fans: *6RGB Controller max. LED strips： *6Remote (IR or RF)： *1Cooling Fan Support: Front: 3x140mm( FN14A-S5)Top: 3x120mm , 2x140mm (Fan optional)Rear: 1x140mm( FN14A-S5)Bottom:  0
 M/B Cover： 0PSU Cover： 2x120mm , 2x140mm (Fan optional)Water Cooling Support    (Radiator Size): Front: 120mm, 140mm, 240mm, 280mm, 360mm, 420mmTop: 120mm, 140mm, 240mm, 280mm, 360mmRear:  120mm, 140mmM/B Cover： *0Dust Cover: Removable iron mesh on top, pull-out dust mesh on the bottom  Slots: *7/5  Carton & Logo: GAMEMAX  Dimensions: Chassis: (L)440*(W)235*(H)480mmFull Case (Inc Fascia): (L)476*(W)235*(H)500mmCarton: (L)558*(W)309*(H)565mmNet Weight(kg): 9.2Gross Weight(kg): 10.6VGA Support: up to 425mm(inside the front cover w/o fan)  Vertical Graphics Support YES  CPU Cooler Height: up to 185mm  SPS Length: up to 245mm  Cable Management Depth: 32mm
