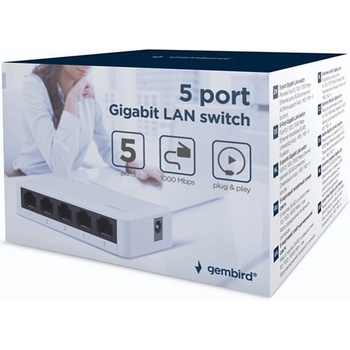

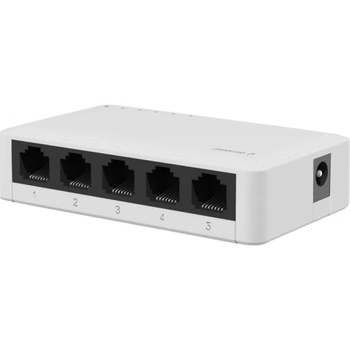

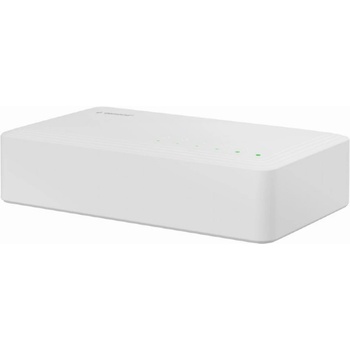

Gembird NSW-G5-01

Certification CE, RoHS

shell materia lThe plastic

LED indicators Yes

product color White

Packaging

Package depth 85mm

User manual Yes

package height 65mm

package width 90mm

Packaging type Cash register

Weight and measurements

Depth 49mm

Height 21mm

Width 83mm

Environmental conditions

Operating temperature range 0 - 40°C

Relative humidity range during storage 5 - 90%

Storage temperature range- 40 - 70°C

Relative humidity range for operation 10 - 90%

heat dissipation 12.55 BTU/hr

Ports and Interfaces Basic Switch Type RJ-45 Ethernet Ports Gigabit-Ethernet (10/100/1000)

Number of basic RJ-45 Ethernet switching ports 5

Management Features switch layer L2

Web-based administration Yes

switch type unmanaged

Quality of Service (QoS) support Yes

Connection network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

port mirroring Yes

Auto MDI / MDI-X Yes

auto-negotiation Yes

limit rate Yes

energy control

AC input voltage100 - 240V

power supply included Yes

Input current 1A

DC input voltage 5 AD

AC input frequency 50 - 60Hz

Performance

Plug and PlayYes
