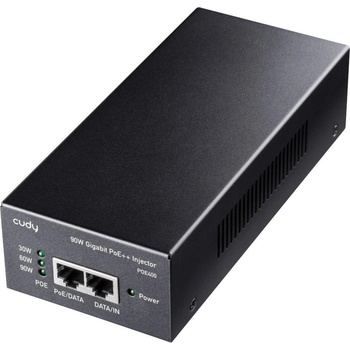

GeoVision GV-POE400

Cudy POE400



PoE инжектор с метален корпус за монтиране на стена. Дава 90W мощност към Ethernet кабела за захранване
на PoE устройството.

Specifications:Protocols802. 3 Protocols

• 802.3i 10 Mbps over Twisted Pair
• 802.3u 100 Mbps over Twisted Pair
• 802.3ab 1 Gbps over Twisted Pair
• 802.3af PoE
• 802.3at PoE
• 802.3bt PoE







PoEPoE In 1× GbE Pin Assignment 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+)PoE Out 1× GbE, 802.3at/af Transimission Distance 100m





InterfacesLED

• Power
• PoE Mode

Power Input AC Inlet





PowerAC 100-240V 50/60Hz Max Power Output 90W





ReliabilityClient Protection Surge Protection ESD Air Protection 8kVLightning/Surge Protection 6kV Grounding Methods Three-Prong PlugESD Contact Protection 6kV Environment Ambient Operating Temperature: -10~45 ℃ (14~113 ℉)
Storage Temperature: -20~70 ℃ (-4~158 ℉)
Operating Humidity: 10%~80% non-condensing
Storage Humidity: 5%~80% non-condensing





MechanicalInstallation

• Desktop
• Wall-mount
< /ul> Casing Material MetalDimension 178.5×80×46 mm
7.03×3.15×1.81 inches Certifications FCC, CE
