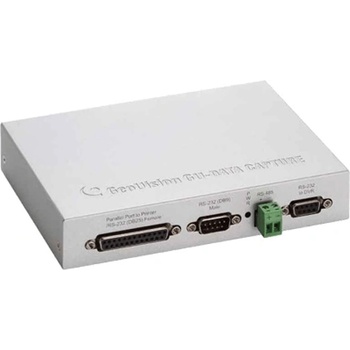

GeoVision Кепчър GeoVision GV-Data Capture V3.1 55-POS1P-300, входове - DB9(м), DB25(ж), изходи - DB9(м), DB25(ж), DB9(ж), RJ-45, RS-485+, RS-485- (55-POS1P-300)
GeoVision 55-POS1P-300 GV-Data Capture V3.1 allows the integration of POS systems and GV-DVR systems through wiring or network. It captures information from POS, ATM, cashier system,...
157,23 €|307,52 лв.*
Безплатна доставка, В рамките на 3 дни
Вид:
Най-евтини оферти (1)
GeoVision Кепчър GeoVision GV-Data Capture V3.1 55-POS1P-300, входове - DB9(м), DB25(ж), изходи - DB9(м), DB25(ж), DB9(ж), RJ-45, RS-485+, RS-485- (55-POS1P-300)
Безплатно
Кепчър GeoVision GV-Data Capture V3.1 55-POS1P-300, входове - DB9(м), DB25(ж), изходи - DB9(м), DB25(ж), DB9(ж), RJ-45, RS-485+, RS-485- (55-POS1P-300)
Кепчър GeoVision GV-Data Capture V3.1 55-POS1P-300, входове - DB9(м), DB25(ж), изходи - DB9(м), DB25(ж), DB9(ж), RJ-45, RS-485+, RS-485- (55-POS1P-300)
Описание на продукта
GeoVision 55-POS1P-300 GV-Data Capture V3.1 allows the integration of POS systems and GV-DVR systems through wiring or network. It captures information from POS, ATM, cashier system,...
Параметри на продукта
Производител
GeoVision
Етикет
GeoVision
Параметри на продукта
Производител
GeoVision
Етикет
GeoVision
Описание на продукта
GeoVision 55-POS1P-300
GV-Data Capture V3.1 allows the integration of POS systems and GV-DVR systems through wiring or network. It captures information from POS, ATM, cashier system, or any other device providing text data, and overlays the information directly onto the live or recorded video images. With the introduction of GV-Data Capture V3.1, you can now empower your business with the total integration of GeoVision digital surveillance system, effectively reduce inventory shrinkage and prevent losses.
Specifications
Connector Function
Input DB9 Female RS-232 from POS
DB25 Male / Parallel Port RS-232 from POS / Parallel Port from POS
Output DB9 Male RS-232 to Printer
DB25Female / Parallel Port RS-232 to Printer / Parallel Port to Printer
DB9 Female RS-232 to DVR
RJ-45
(only for GV-Data Capture V3.1E) RJ-45 to DVR
RS-485+ Connect to GV-NET / GV-Hub / GV-COM RS-485+
RS-485- Connect to GV-NET / GV-Hub / GV-COM RS-485-
Method Speed
Communication
RS-232 from POS 1,200 bps~115,200 bps
RJ-45 to DVR 10 / 100 Mbps
RS-232 to DVR 1,200 bps~115,200 bps
RS-485 to GV-NET Card / GV-NET I/O Card 1,200 bps~19,200 bps
RS-485 to GV-Hub / GV-COM 600 bps~115,200 bps
DC In Power Adapter DC5V, 2A Inner Positive
Environmental Conditions
Operating Temperature 0~50°C (32 ~ 122 °F)
Humidity 5%~95% (non-condensing)
Dimensions (W x H x D) 161 x 34 x 123 mm (6.34 x 1.34 x 4.84 in)
GV-Data Capture V3.1 allows the integration of POS systems and GV-DVR systems through wiring or network. It captures information from POS, ATM, cashier system, or any other device providing text data, and overlays the information directly onto the live or recorded video images. With the introduction of GV-Data Capture V3.1, you can now empower your business with the total integration of GeoVision digital surveillance system, effectively reduce inventory shrinkage and prevent losses.
Specifications
Connector Function
Input DB9 Female RS-232 from POS
DB25 Male / Parallel Port RS-232 from POS / Parallel Port from POS
Output DB9 Male RS-232 to Printer
DB25Female / Parallel Port RS-232 to Printer / Parallel Port to Printer
DB9 Female RS-232 to DVR
RJ-45
(only for GV-Data Capture V3.1E) RJ-45 to DVR
RS-485+ Connect to GV-NET / GV-Hub / GV-COM RS-485+
RS-485- Connect to GV-NET / GV-Hub / GV-COM RS-485-
Method Speed
Communication
RS-232 from POS 1,200 bps~115,200 bps
RJ-45 to DVR 10 / 100 Mbps
RS-232 to DVR 1,200 bps~115,200 bps
RS-485 to GV-NET Card / GV-NET I/O Card 1,200 bps~19,200 bps
RS-485 to GV-Hub / GV-COM 600 bps~115,200 bps
DC In Power Adapter DC5V, 2A Inner Positive
Environmental Conditions
Operating Temperature 0~50°C (32 ~ 122 °F)
Humidity 5%~95% (non-condensing)
Dimensions (W x H x D) 161 x 34 x 123 mm (6.34 x 1.34 x 4.84 in)
